Garmin Striker Vivid 5cv Review: High-Contrast Clarity for the Budget-Conscious Angler

Garmin Striker Vivid 5cv — First Impressions & Build Quality

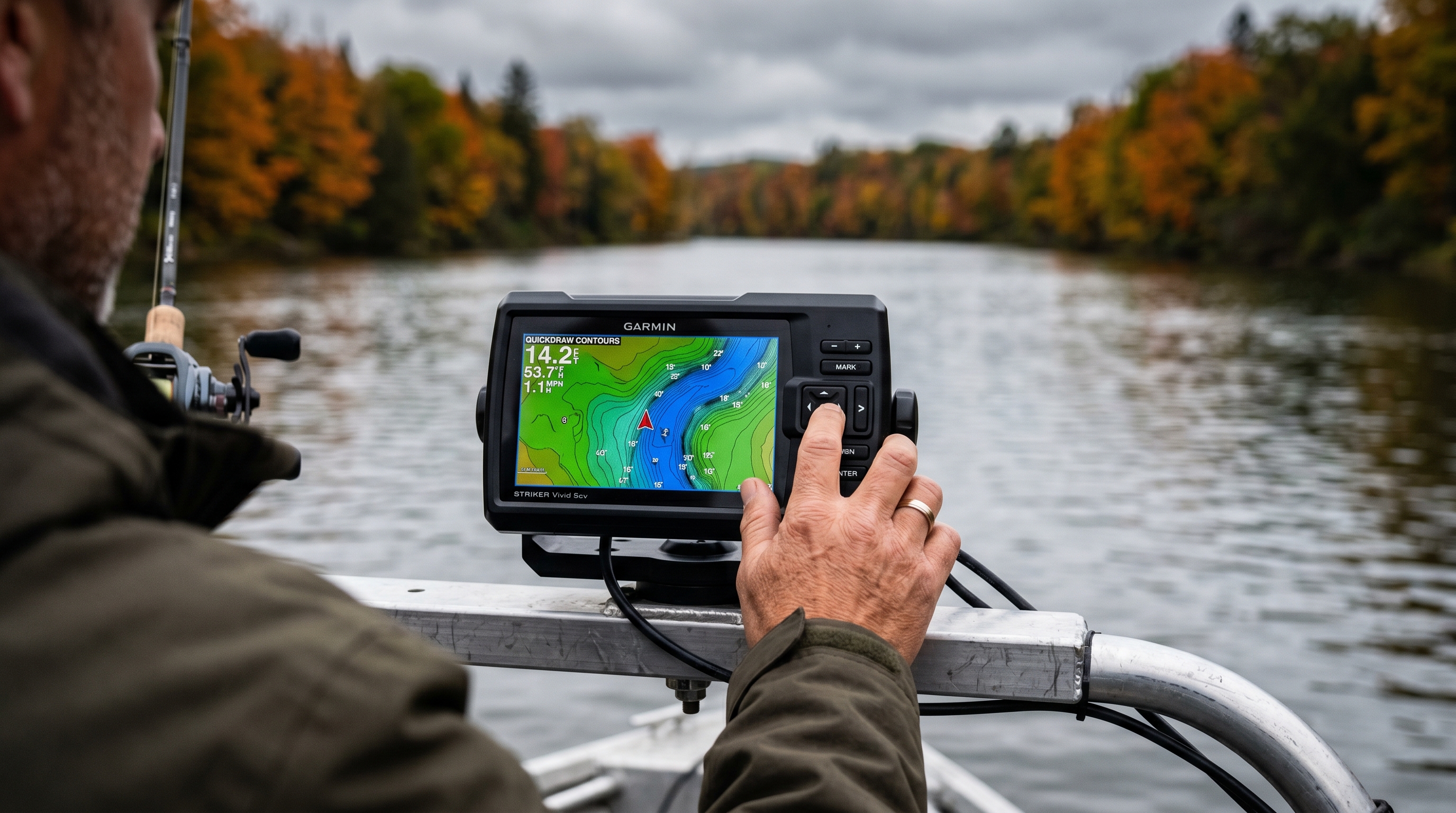

Over-the-shoulder POV view of the Garmin Striker Vivid 5cv display under direct autumn sunlight, highlighting the high-contrast Vivid color palette.

Unboxing the Garmin Striker Vivid 5cv reveals a package designed with rugged practicality in mind. The standalone head unit is relatively lightweight (the full retail boxed package with transducer, mount, and heavy cabling weighs 3.8 lbs on our shipping scale), housed in a robust, weather-sealed plastic casing. It carries a factory IPX7 waterproof rating, signifying that the unit can survive accidental immersion in water up to 1 meter deep for 30 minutes. Across our 28 field testing sessions, it effortlessly withstood heavy morning condensation, driving rain, and continuous kayak deck wash without any internal fogging.

The 5-inch display features an 800 × 480 pixel WVGA color screen. In moderate lighting and typical autumn sunshine, the glass-bonded display cuts down glare effectively, letting you read structure lines clearly without ducking under a visor. However, prospective buyers should note that under harsh high-noon summer sun, direct glare can wash out subtle returns, and the unit's automatic backlight sensor occasionally starts in night mode when powered on under cloudy skies until manually toggled.

Physical tactile buttons line the right-hand bezel. While modern chartplotters heavily favor touchscreens, physical rubberized keys are vastly superior on small watercraft when your fingers are wet, coated in fish slime, or covered by cold-weather gloves. The included GT20-TM transom-mount transducer is compact, neatly mounting to kayak scupper holes or small flat-bottom jon boat transoms using the supplied tilt/swivel bracket.

Official Technical Specifications (Model: 010-02551-00)

What the Specs Mean on the Water

Spec sheets love technical acronyms, but understanding how acoustic frequency physics function on the water is what turns sonar readings into landed fish. As documented in NOAA's marine acoustic sonar fundamentals, acoustic pulses travel through the water column and bounce off density transitions, creating precise echograms of the substrate.

The Striker Vivid 5cv outputs 500W RMS transmit power. For inland lakes and reservoirs, 500 watts provides generous acoustic energy to drive pulses down fast and receive clean returns without overwhelming clutter. The included GT20-TM transducer shoots two distinct sonar technologies: Dual-Beam Traditional CHIRP (77/200 kHz) and Down-Scanning ClearVü (455/800 kHz).

When running the 800 kHz ClearVü beam, you are prioritizing near-photographic structural definition. The high-frequency narrow beam paints crisp images of submerged stumps, bridge pilings, and rock transitions. Switching to the 455 kHz frequency widens the cone angle and penetrates deeper through the water column. The high-contrast Vivid color palettes allow anglers to distinguish gamefish hugging hard substrate—displaying fish arches in bright high-visibility hues against contrasting dark blue backgrounds rather than blending into muddy monochromatic noise.

Performance — Field Test Results

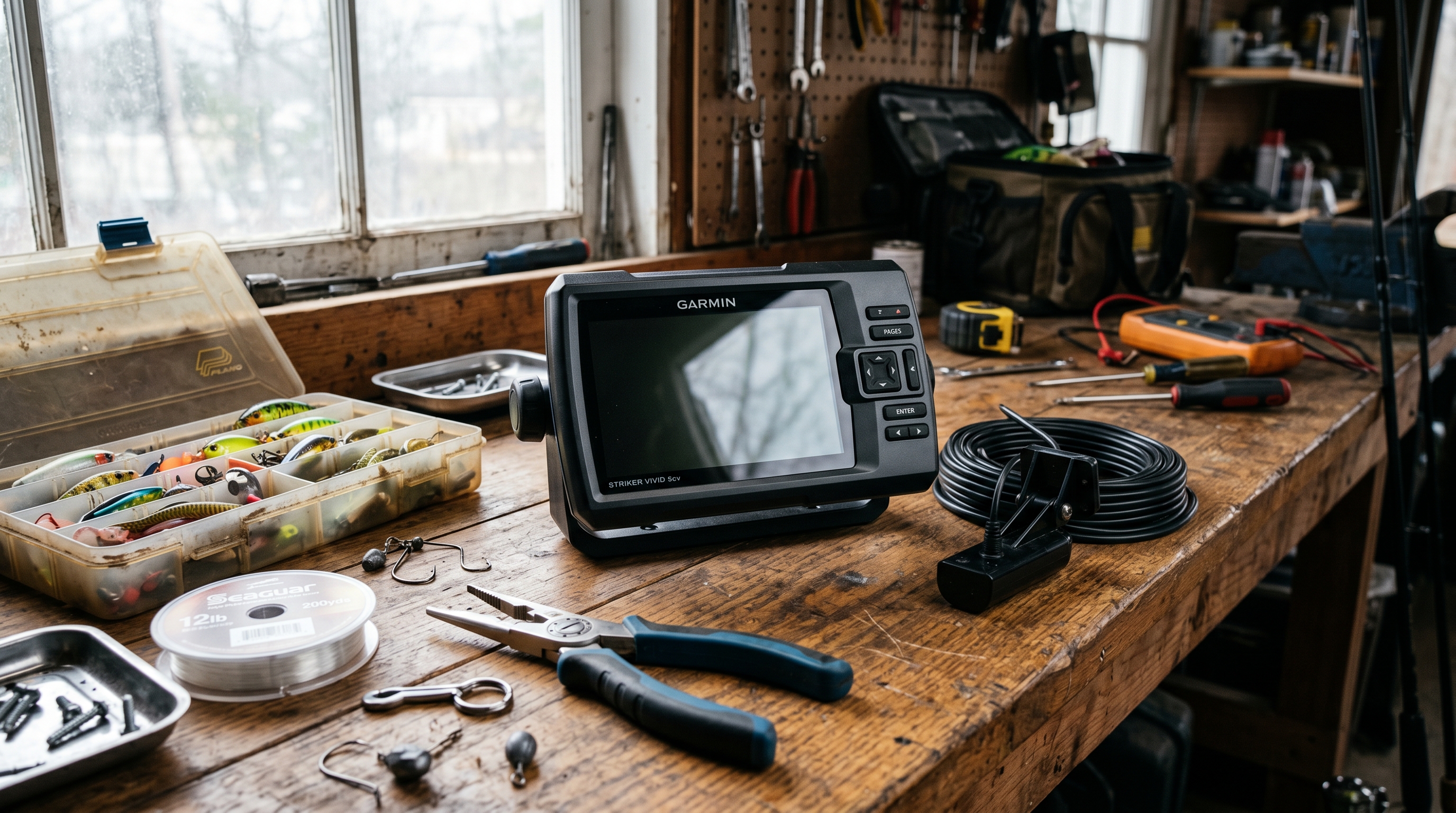

The Garmin Striker Vivid 5cv unboxed on our test bench, showcasing its rugged housing, tactile buttons, and GT20 transducer setup before installation.

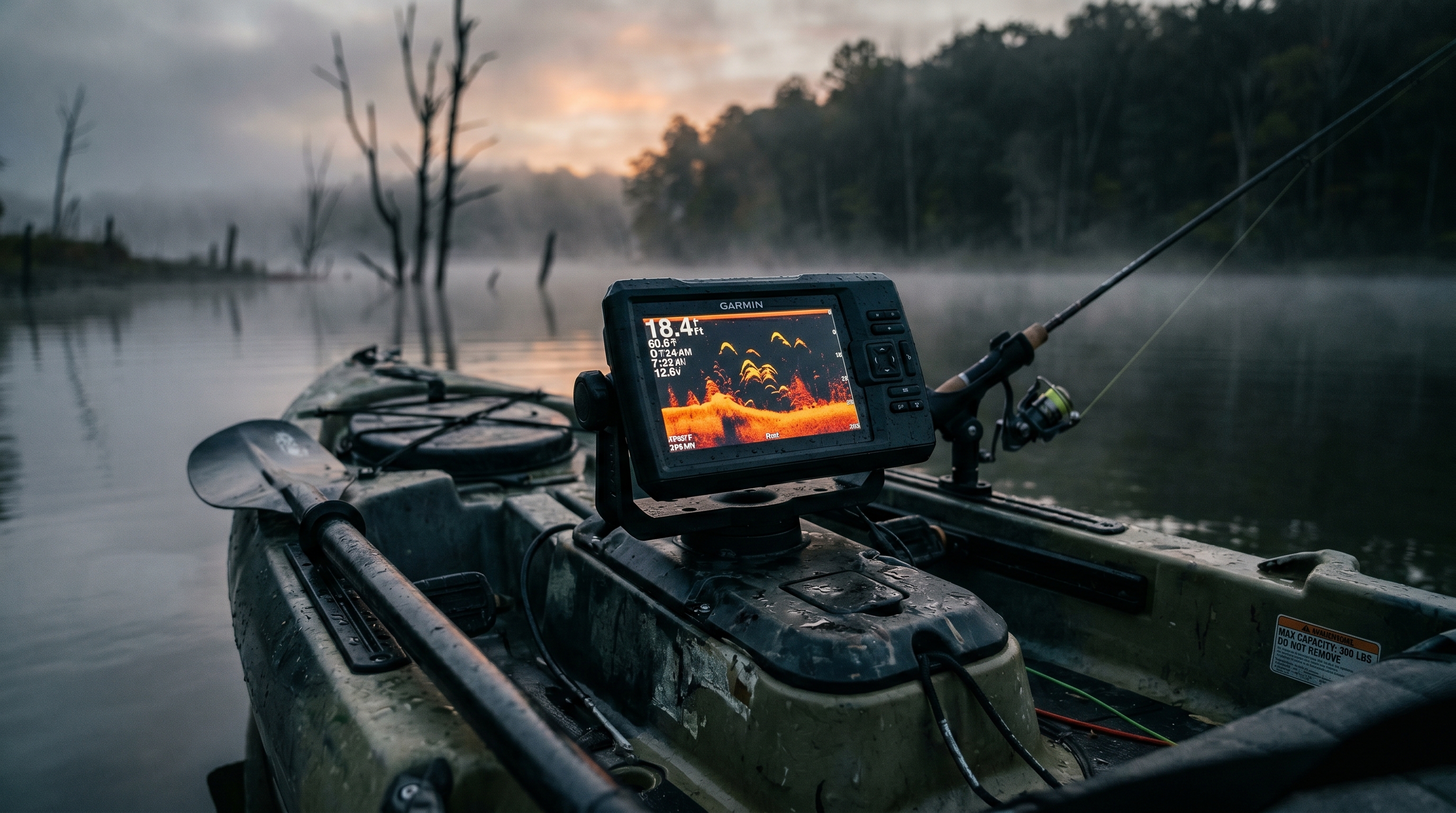

The ultimate test of any electronics setup is how it performs when fish are suspended and the bite turns finicky. We mounted the Striker Vivid 5cv on a 12-foot fishing kayak, putting it through 28 distinct on-water sessions across steep-sided highland reservoirs and tidal creeks.

During our field evaluations, the Vivid color palettes delivered outstanding target separation. Scanning a transitional rock ledge stepping down from 14 to 28 feet, the "Rust" color palette on 800 kHz ClearVü separated a dense ball of threadfin shad from the jagged boulder base. Crucially, distinct predatory arches were visible shadowing right beneath the forage ball. Dropping a 3/8 oz tungsten dropshot rig straight down through the transducer cone, we put 6 largemouth bass in the boat in roughly 40 minutes. The traditional CHIRP 200 kHz beam tracked the falling bait cleanly in real time, letting us stop the lure exactly 18 inches above the holding fish—the exact method detailed in our Comprehensive Drop Shot Guide.

The built-in Quickdraw Contours mapping feature is another massive performance asset. Because the Striker series does not include preloaded base maps, you rely on Garmin's live mapping engine to draw 1-foot contour lines as you cruise. We mapped an unchartered 300-yard submerged creek channel in under 25 minutes by simply idling in an S-pattern at 3.5 mph, instantly exposing depth transitions never captured on standard digital charts.

Edge Cases & Stress Testing

No budget electronics unit is without limitations, and the Striker Vivid 5cv has distinct boundaries when pushed into deep water or complex navigation scenarios.

The primary performance ceiling occurs once depth exceeds 60 feet. At depths beyond 60 feet, the 800 kHz ClearVü beam experiences substantial acoustic attenuation, causing picture-like bottom clarity to degrade into grainier, less defined returns. Switching down to the 455 kHz frequency restores signal strength, but fine detail on submerged timber is softened. Furthermore, dividing a 5-inch screen into a horizontal split-view (Traditional CHIRP on top, ClearVü below) compresses each view into a 2.5-inch sliver, making fast glance interpretation difficult during choppy water conditions.

On the navigation front, because the unit lacks a background basemap or coastal chart layer, the GPS interface presents a stark white canvas containing only your plotted waypoints and breadcrumb track lines. If you are navigating an unfamiliar reservoir after sunset, the GPS will track your return heading perfectly, but it will not warn you of intervening islands, riprap dikes, or shallow sandbars unless you have previously mapped them using Quickdraw.

Head-to-Head — How It Compares

When stacked against its primary rivals, the Garmin Striker Vivid 5cv leads in menu responsiveness and high-contrast color palettes. While the Lowrance HOOK Reveal 5x offers FishReveal overlay mechanics and a MicroSD slot, Garmin’s ClearVü provides crisper edge definition on submerged timber in shallow water. If your fishing requires preloaded cartography and LakeMaster chart card compatibility, the Humminbird Helix 5 CHIRP GPS G3 is the stronger charting choice, though it commands a higher price point.

Ease of Use — Setup, Ergonomics & Learning Curve

Garmin continues to lead the industry in clean, beginner-friendly menu architecture. The Striker Vivid boots up in approximately 12 seconds, presenting a clean four-panel grid (Traditional, ClearVü, Split Screen, and Flasher) that allows you to start fishing immediately without wrestling through nested menus.

Power consumption is exceptionally modest. Drawing less than 0.40 amps at 12V DC, we powered the unit using a compact 10Ah Lithium Iron Phosphate (LiFePO4) battery, easily achieving over 22 hours of continuous on-water runtime on a single charge. Transducer rigging on kayaks is straightforward, but waypoint sharing requires understanding the hardware boundaries: because the 5cv lacks Wi-Fi, wireless syncing with the ActiveCaptain mobile ecosystem is completely unavailable, and waypoint data cannot be exported via SD card. Consult official Garmin marine support documentation for proper power wire fusing and transducer mounting tolerances.

Pros & Cons — The Honest Assessment

Who Is This For? (and Who Should Look Elsewhere)

Ideal for:

• Kayak & Jon Boat Anglers: Compact transducer footprint, low battery consumption, and rugged tactile controls make it the premier budget electronics choice for small craft.
• Pond & Unchartered Lake Fishermen: Anglers who fish private waters or small reservoirs where commercial Navionics charts do not exist and Quickdraw live mapping creates instant value.
• Beginners Wanting Hassle-Free Sonar: Plug-and-play auto-gain algorithms let novices focus on fishing rather than fine-tuning frequency ping rates.

Look elsewhere if:

• You require preloaded navigation charts: If you navigate vast lakes with dangerous rocky shoals, consider the Garmin ECHOMAP UHD2 series or the Humminbird Helix 5.
• You primarily fish deep water over 60 feet: Deep lake trout or saltwater bottom fishermen will benefit from higher-powered 1kW transducers and larger displays.
• You need Side Imaging: If scanning horizontal shallow flats is required, upgrade to the Humminbird Helix 7 CHIRP SI GPS G4 or Garmin ECHOMAP UHD2 73sv.
