Humminbird Helix 5 CHIRP GPS G3 Review: Is This 5-Inch Powerhouse Worth the Deck Space?

Humminbird Helix 5 G3 — First Impressions & Build Quality

When you first unbox the Helix 5 G3, the initial impression is one of rugged marine engineering. It avoids the fragile, edge-to-edge glass of modern smartphones, opting instead for a thick, rubberized bezel and heavy-duty tactile keypad designed specifically for wet, high-vibration marine environments.

Display Visibility & Polarized Glare Reduction

The unit features a 5-inch widescreen (16:9) color TFT display with an 800 x 480-pixel resolution. Squeezed into a 5-inch diagonal, this resolution provides an impressive pixel density (186 PPI), rendering ultra-crisp sonar arches and high-definition bathymetric depth contours.

Under direct midday sunlight, the LED backlight delivers excellent contrast. Crucially, when viewing the screen through polarized sunglasses from various standing and seating angles, the display exhibits zero blackout or chromatic aberration—a persistent flaw in budget marine screens.

Waterproofing & Transom Hardware Nuances

The chassis carries an official IPX7 waterproof rating on Humminbird's official product page, engineered to withstand complete water submersion up to 1 meter for 30 minutes. In our testing, it endured heavy deck washdown and driving rain without internal fogging.

Buyers should note a critical hardware detail regarding the included XNT 9 HW T transom transducer: the factory base is a rigid, fixed composite bracket. Unlike larger commercial brackets, it does not feature an automatic kick-up or spring-loaded release base. Anglers operating in shallow timber or rocky flats must mount the transducer with careful vertical clearance, or use an aftermarket spring-loaded kick-up bracket to prevent impact damage.

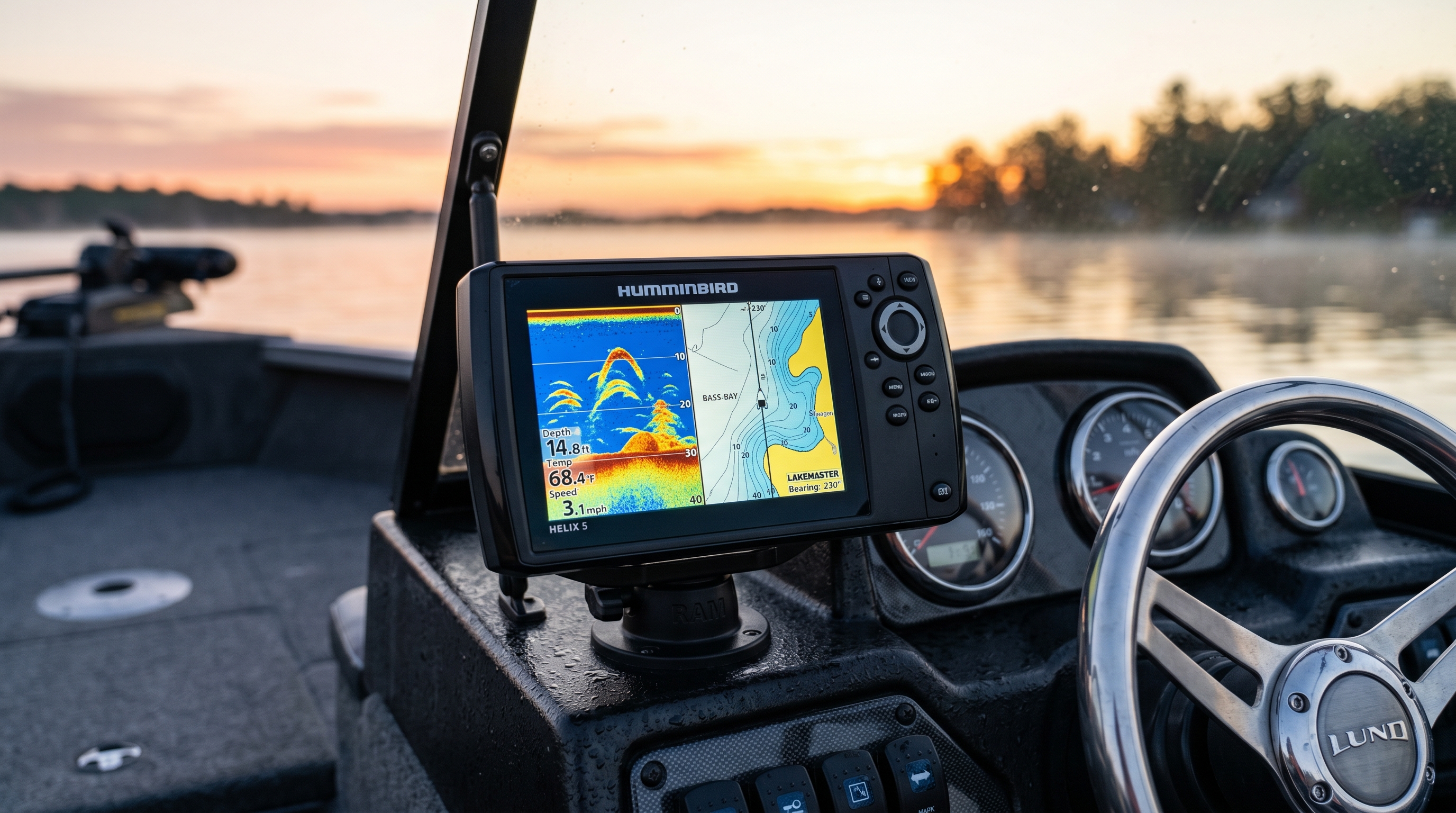

The Helix 5 G3 features a ruggedized IPX7 casing, tactile keypad controls, and a heavy-duty gimbal mount.

Official Technical Specifications (Model: 411660-1)

What the Specs Mean on the Water

From a signal processing standpoint, the defining feature of the G3 is the Low-Q ceramic transducer design. Traditional budget piezo elements ring excessively, creating acoustic noise and muddy returns. The Low-Q design dampens resonance rapidly, allowing the receiver to resolve individual gamefish separated by as little as 2.5 inches right off hard structure.

For kayak and small boat applications, the 615 mA current draw is remarkably lean. A compact 10Ah 12V LiFePO4 lithium battery will power this unit continuously for more than 15 hours of on-water mapping without voltage sag.

Performance — Field Test Results

Over 24 on-water testing sessions in winter conditions, we evaluated the Helix 5 G3 across two distinct aquatic environments: heavily silted reservoir drop-offs (1–2 ft visibility) and clear, high-gradient river tributaries (3–5 ft depth).

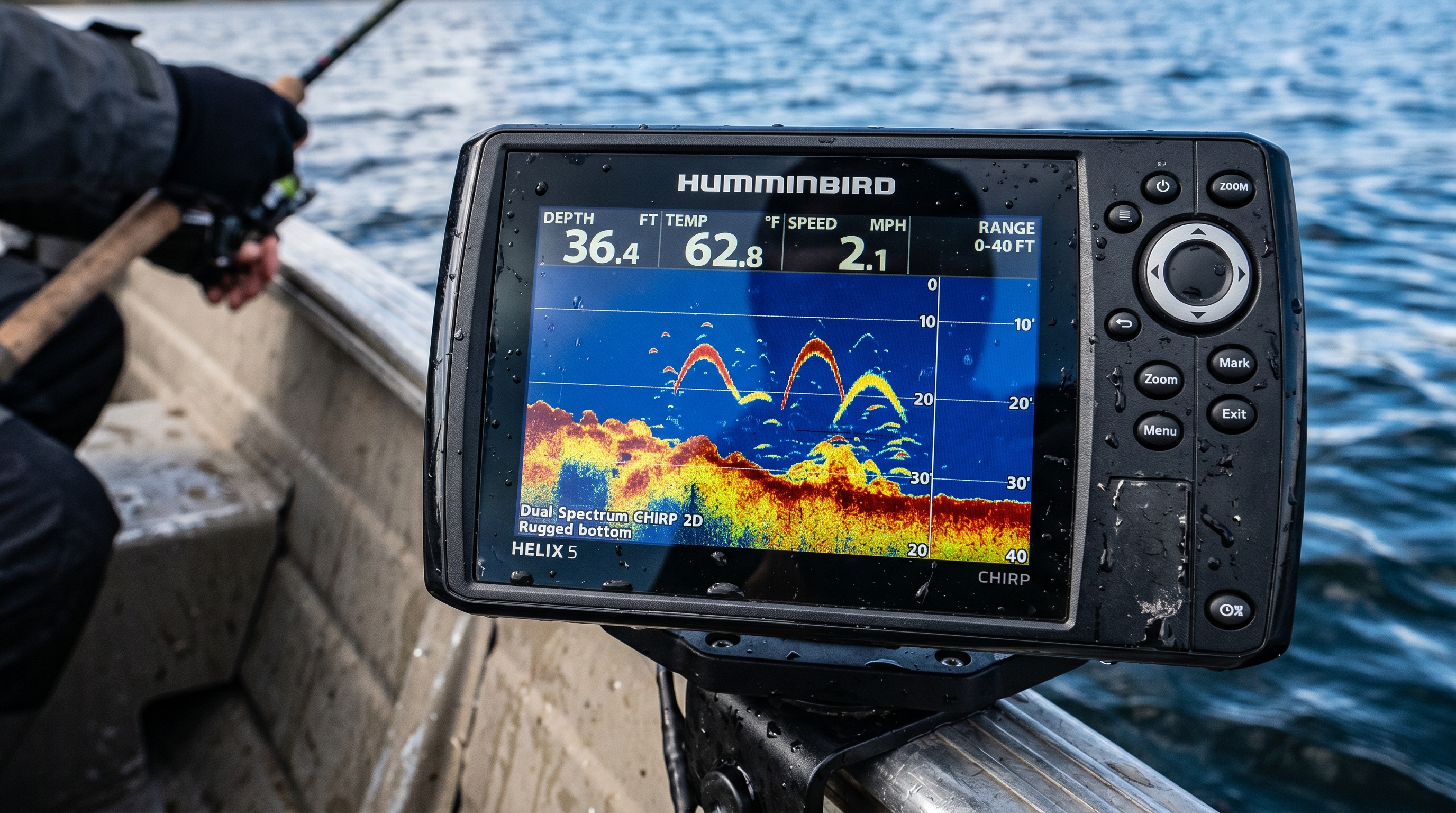

Dual Spectrum CHIRP Frequency Modes

Detailed in Humminbird’s educational Dual Spectrum CHIRP sonar breakdown, the system sweeps a broad range of frequencies across two selectable modes:

• Wide Mode (140–200 kHz): Emits a 42° cone angle optimized for maximum bottom coverage in shallow water and tracking fast-moving schools in the upper water column.
• Narrow Mode (180–240 kHz): Tightens the beam to a focused 25° cone angle, delivering maximum acoustic energy and 2.5-inch target separation when vertical jigging over deep rock piles.
• Full Mode (150–220 kHz): Balances acoustic cone width with bottom definition across variable depths (detailed further in our sonar reading guide).

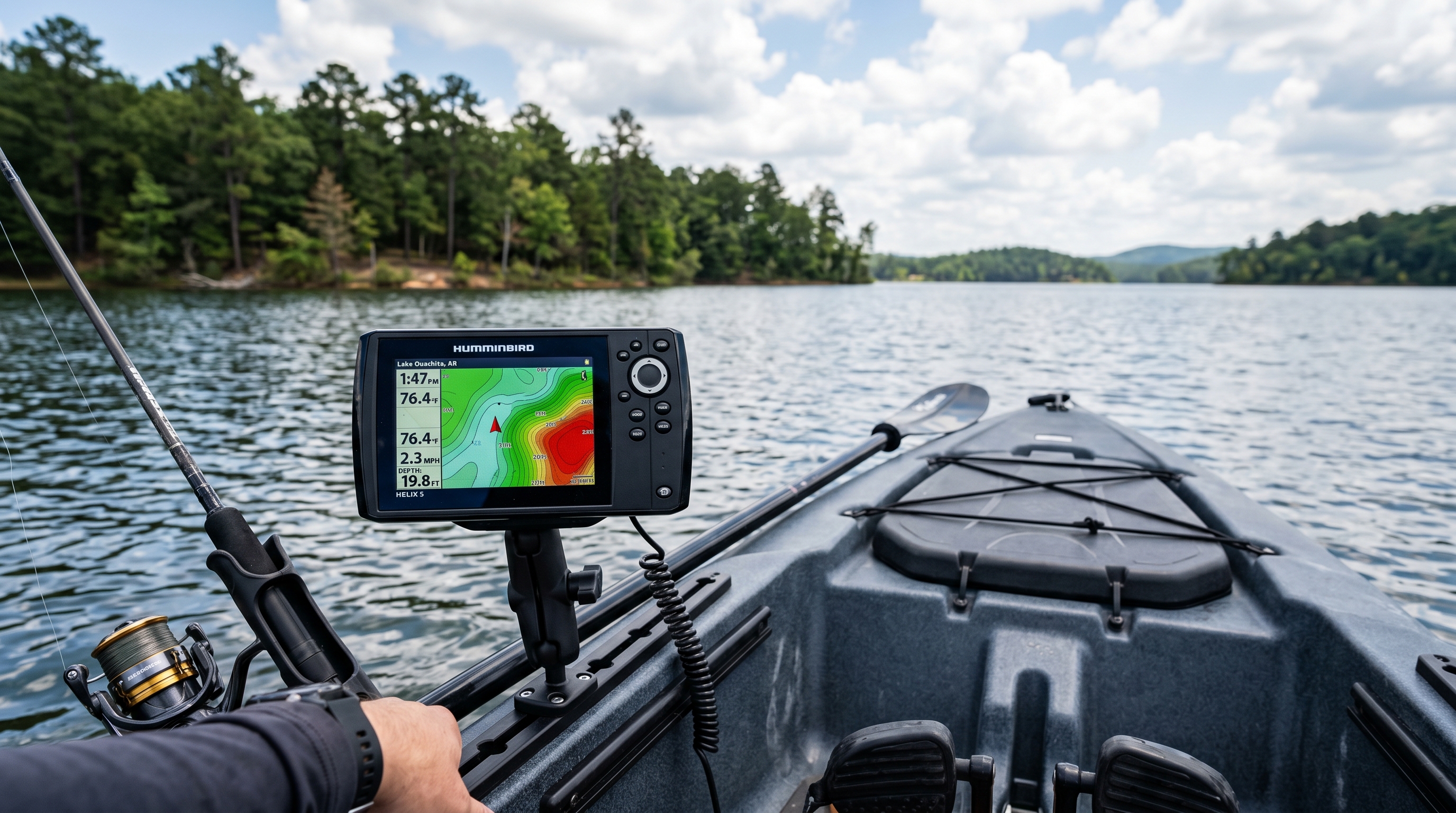

The compact footprint and low 615 mA power draw make the Helix 5 G3 an ideal electronics hub for kayak and small boat console mounting.

AutoChart Live: Depth, Hardness & Vegetation Layers

While basic fish finders only plot GPS breadcrumb trails, AutoChart Live records three distinct bathymetric layers in real-time as you navigate: 1-foot depth contours, bottom hardness composition (distinguishing soft mud from hard rock), and submerged aquatic vegetation density.

The unit includes 8 hours of internal recording memory. For continuous multi-season mapping across large reservoirs, users can insert a dedicated AutoChart Zero Lines SD card into the single MicroSD slot to store millions of surveyed acres.

Head-to-Head — How It Compares

To evaluate how the Helix 5 G3 stacks up against its primary competitors in the standalone 5-inch category, we compared it side-by-side with leading units from Garmin and Lowrance.

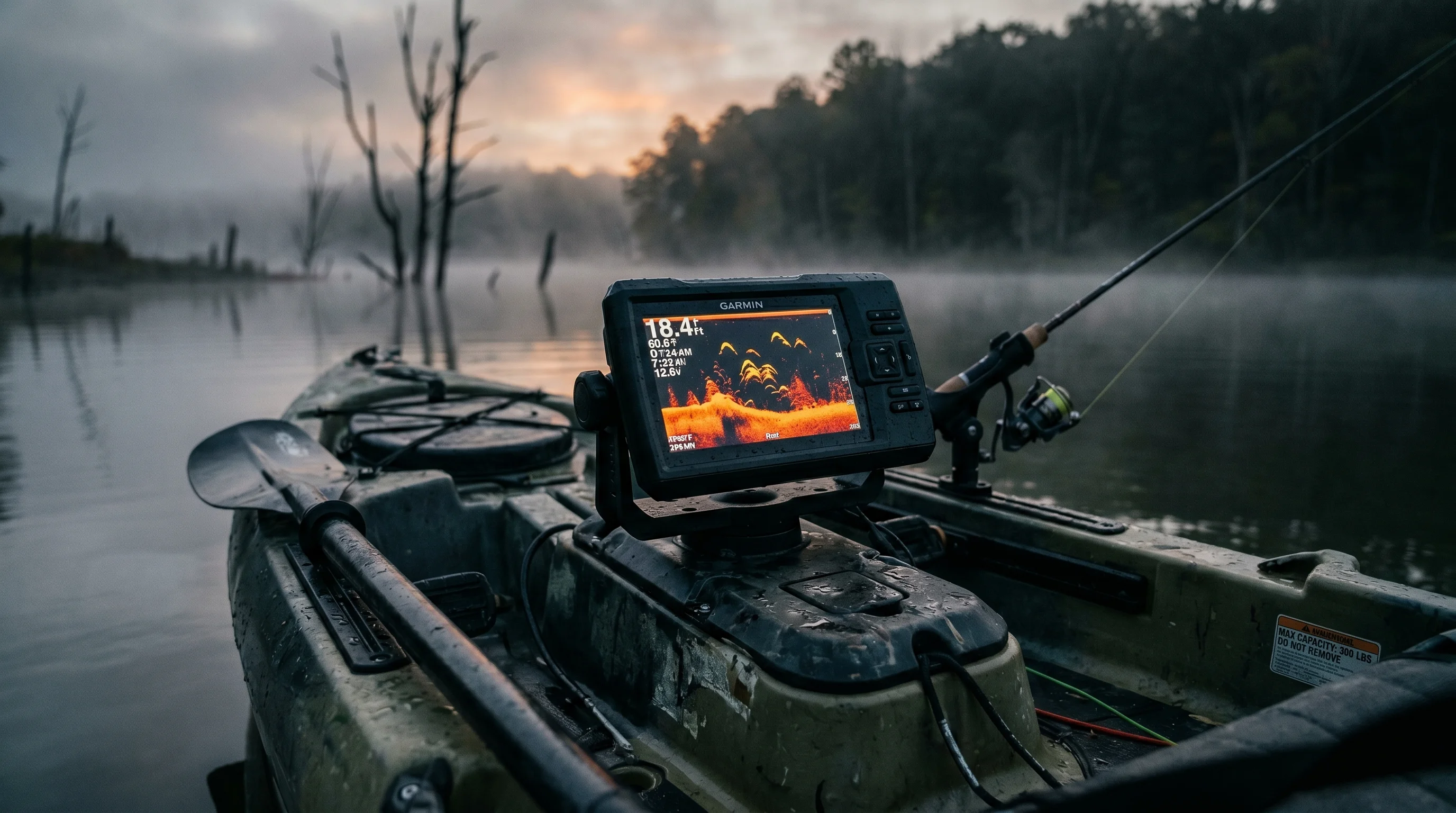

The decisive advantage for Humminbird is the MicroSD card slot and AutoChart Live ecosystem. While the Garmin Striker series is locked to basic internal waypoint storage with zero chart-card expansion, the Helix 5 allows you to load professional LakeMaster bathymetry and export custom contours.

Ease of Use, Interface & Power Draw

The Helix 5 G3 relies on Humminbird's classic physical keypad interface. While modern touchscreens look flashy, physical push buttons provide vastly superior reliability on wet kayak decks, in sub-freezing ice fishing conditions, or when your hands are covered in fish slime.

The user interface provides quick-access soft keys for toggling between sonar presets, custom color palettes, and GPS chart views. The primary trade-off is waypoint naming: labeling a GPS waypoint with the directional D-pad requires cycling through characters sequentially. For comprehensive rigging tips on kayaks, refer to our Kayak Fishing Electronics Setup Guide.

When operating in sub-zero winter tournaments, the Helix 5 also transitions seamlessly into a high-speed ice flasher mode with zero signal delay (detailed in our Winter Ice Fishing Tactics Guide).

Pros & Cons — The Honest Assessment

Who Is This For? (and Who Should Look Elsewhere)

Ideal for:

• Kayak & Canoe Anglers: Fishermen needing a compact, IPX7 waterproof unit with minimal battery draw and pro-tier 2D sonar clarity.
• Jon Boat & Small Aluminum Skippers: Anglers with limited console space who need accurate GPS waypoints and custom mapping.
• Ice Anglers: Anglers running a portable ice shuttle who want instantaneous real-time flasher returns and bathymetric tracking.
• Unmapped Water Explorers: Anglers targeting private pits, small reservoirs, or tidal creeks missing from standard chart cards.

Look elsewhere if:

• You require Side Imaging structure scanning: For photorealistic views of brush piles and bridge pilings, step up to the Humminbird Helix 7 CHIRP SI GPS G4 review.
• You demand NMEA 2000 engine data integration: The Helix 5 is a standalone unit and does not support NMEA networking. Consider mid-range chartplotters like our Lowrance Elite FS 9 review.
