Garmin ECHOMAP UHD2 73sv Review (2026): High-Definition Scanning and Wireless Networking Tested

Garmin ECHOMAP UHD2 73sv — First Impressions & Build Quality

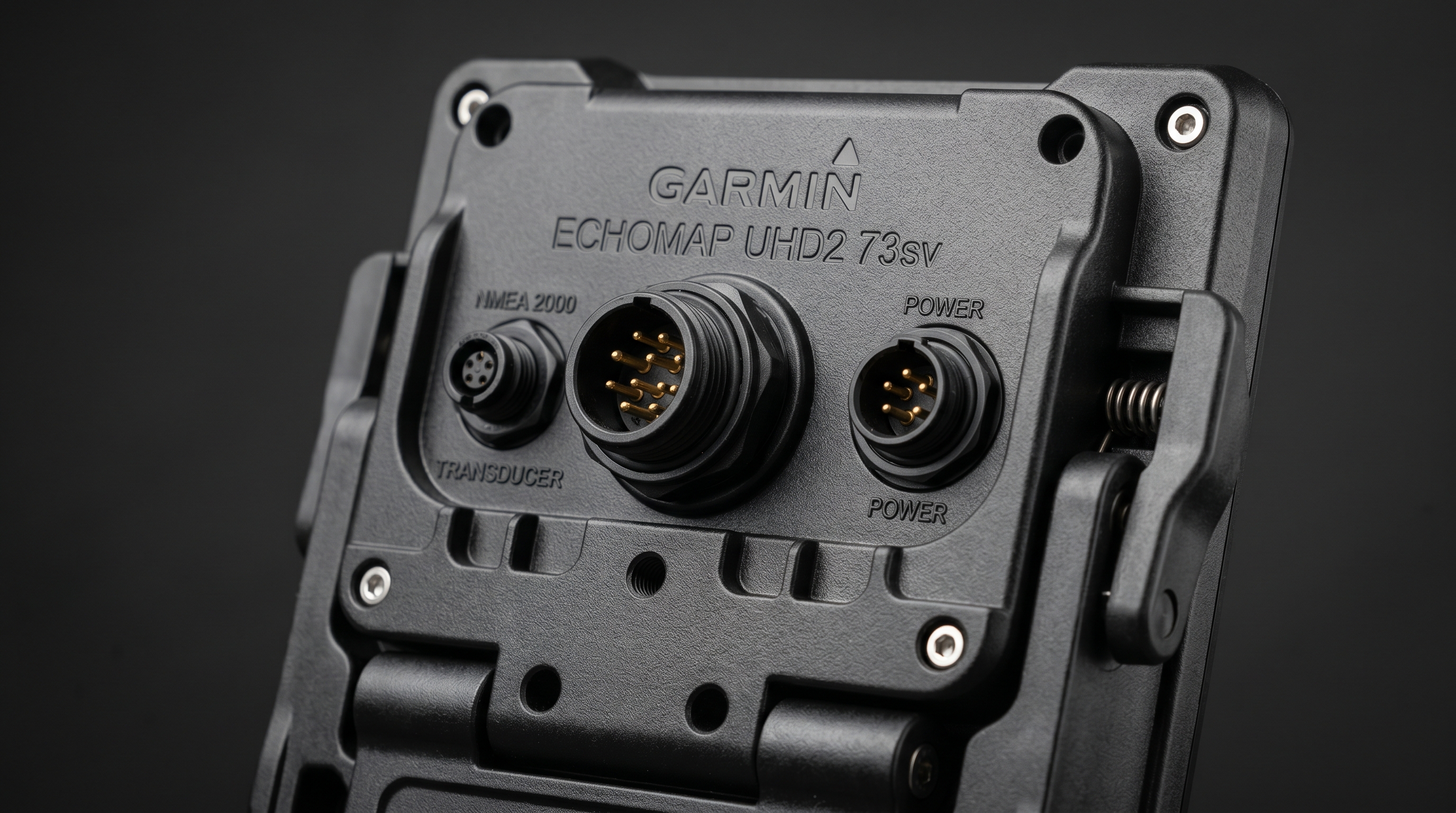

The quick-release cradle interface on the back of the ECHOMAP UHD2 73sv, showing the integrated power, transducer, and NMEA 2000 connection ports.

Unboxing the ECHOMAP UHD2 73sv, Garmin’s robust marine engineering is immediately apparent. The unit feels dense and structurally solid, wrapped in a high-impact composite housing with an IPX7 waterproof rating that easily handles torrential downpours and deck spray.

A standout physical advantage is the keyed-assist touchscreen layout. You receive a highly responsive 7-inch capacitive touchscreen paired with a dedicated column of tactile, rubberized buttons on the right bezel. When taking heavy spray in rough water, physical buttons allow instant waypoint marking and zoom control without accidental mis-taps.

The quick-release bail mount system remains one of Garmin's most practical hardware assets. All power, transducer, and NMEA 2000 network cables connect directly into the cradle rather than the head unit itself. You lock the 73sv in with a reassuring click to power up, and pop it out instantly via a single top release lever when trailering or parking at tournament hotels.

Official Technical Specifications

What the Specs Mean on the Water

The multi-band GPS with a 5 Hz internal receiver updates your boat's position 5 times per second, compared to 1 Hz (once per second) on entry-level units like the Garmin Striker 4. When using a trolling motor to hold on a brush pile in 15 mph winds, that rapid position calculation prevents jagged boat icon jumps and ensures you cast directly into the sweet spot.

The display resolution is 800 × 480 pixels (WVGA). On a 7-inch display, pixel density is clean and crisp for distinguishing bass from submerged timber. While it does not match the 1080p full-HD resolution of multi-thousand dollar glass bridge displays, its high-contrast color palettes ensure reliable target separation under bright midday sun. For deeper technical interpretation of returns, review our guide on how to read fish finder sonar.

Performance — Field Test Results

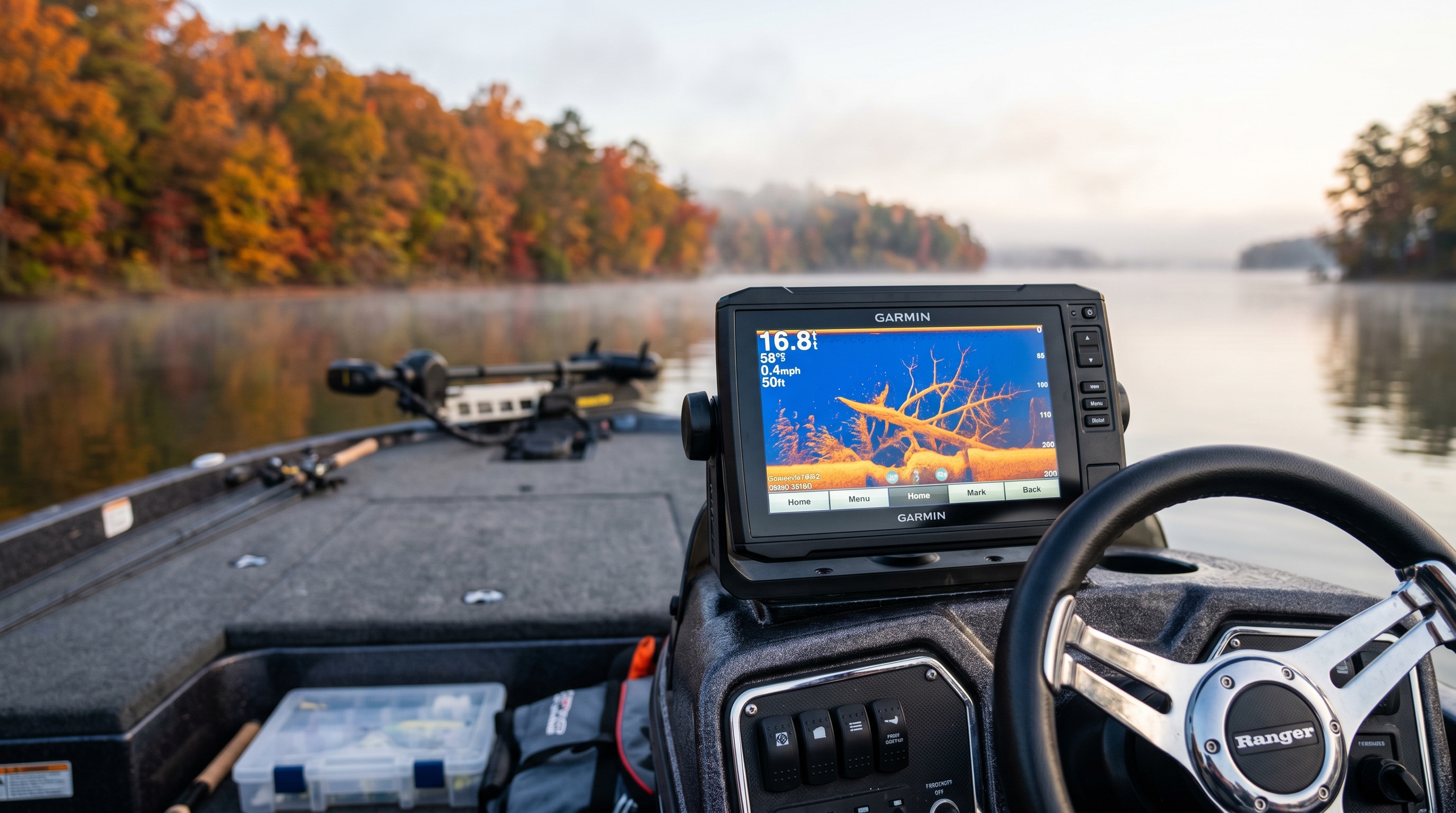

Field testing the ECHOMAP UHD2 73sv with the GT54UHD-TM transducer, delivering high-definition SideVü scanning along deep weedlines.

We evaluated the ECHOMAP UHD2 73sv across 23 on-water sessions on an 18-foot fiberglass bass boat, pairing the console unit with the included GT54UHD-TM transom-mount transducer. Testing environments spanned stained mid-Western reservoirs with 1–2 ft visibility and clear highland impoundments during challenging seasonal transitions.

The GT54UHD-TM transducer outputs traditional High-Wide CHIRP alongside Ultra High-Definition ClearVü and SideVü. Operating at 1,120 kHz, the SideVü beam painted razor-sharp bottom structure out to 60 feet on either side of the keel.

During one key trial, while idling at 3.8 mph along a 22-foot breakline, SideVü clearly outlined an isolated timber laydown that had fallen off a secondary point. We marked a waypoint, spun the boat with the bow motor, and switched to High-Wide CHIRP. Individual fish arches were stacked right above the main trunk. Finesse-dragging 3/16 oz Ned rigs produced 8 quality spotted bass within 45 minutes—fish we would have completely bypassed without UHD structure identification.

The integrated Garmin Navionics+ mapping proved exceptionally reliable, with 1-foot contour lines matching live sonar readings across surveyed channels. Auto Guidance+ smoothly calculated safe running courses around shallow flats and hazardous shoals.

Edge Cases & Deep-Water Limits

The GT54UHD-TM is optimized for shallow-to-mid depths (5 to 60 feet). When graphing across a 120-foot river channel looking for suspended forage, the 1,120 kHz UHD SideVü return attenuated rapidly. Dropping the frequency down to 455 kHz restored broad coverage, though fine target definition softens into larger acoustic blobs. Offshore ledge and saltwater anglers operating beyond 80 feet should evaluate upgrading to the GT56UHD-TM transducer, which delivers higher wattage for deep-water penetration.

Note on installation: the included GT54UHD-TM transducer cable measures 15 feet. While ample for kayaks, jon boats, and sub-18-foot hulls, larger bass boats and center consoles will require an extension cable for console routing.

Head-to-Head — How It Compares

The Garmin ECHOMAP UHD2 73sv holds a distinct competitive edge due to its wireless unit-to-unit data sharing and straightforward LiveScope compatibility. Linking two UHD2 screens (console and bow) shares waypoints and live sonar feeds without pulling ethernet cables through foam-filled stringers. While the Humminbird Helix 7 G4 delivers excellent MEGA imaging, its lack of a touchscreen and absence of wireless networking make waypoint entry slower. The Lowrance Elite FS 7 offers strong sonar performance, but requires hardwired networking between units.

Ease of Use, Wireless Setup & Ergonomics

Setting up wireless networking between two UHD2 units takes under two minutes through the system menu, pairing seamlessly much like a mobile device. The user interface features clean, color-coded tiles, allowing customized split-screen combos (such as Navionics Chart left, SideVü top-right, Traditional CHIRP bottom-right) in three quick taps.

Software updates, waypoint management, and Quickdraw community map downloads sync wirelessly via the Garmin ActiveCaptain mobile app. For kayak anglers using compact lithium power systems, typical continuous draw is efficient at approximately 5–7W (~0.42–0.58A at 12V), ensuring full-day operation on compact batteries as detailed in our kayak electronics and rigging guide.

Pros & Cons — The Honest Assessment

Who Is This For? (and Who Should Look Elsewhere)

Ideal for:

• Kayak & Small Boat Anglers: The compact 7-inch footprint and modest 5–7W power draw maximize battery life on small vessels.
• Budget-Conscious Tournament Anglers: Setting up bow and console UHD2 units linked wirelessly provides tournament-grade scanning without multi-thousand dollar rig costs.
• Inland Bass, Crappie & Walleye Fishermen: Anglers operating in 5 to 50 feet of water will extract full performance from the GT54UHD-TM transducer.

Look elsewhere if:

• You fish deep offshore ledges (>80 ft) or blue-water saltwater: Stepping up to a higher-wattage GT56 transducer or Garmin GPSMAP series is necessary for deep target penetration.
• You require preloaded Canadian marine charts: The standard 73sv comes preloaded with U.S. Inland mapping; Canadian waters require purchasing regional Navionics Vision+ accessory cards.
