First Impressions & Build Quality: Rugged Waterproof Housing

Ruggedized Design and Physical Form Factor

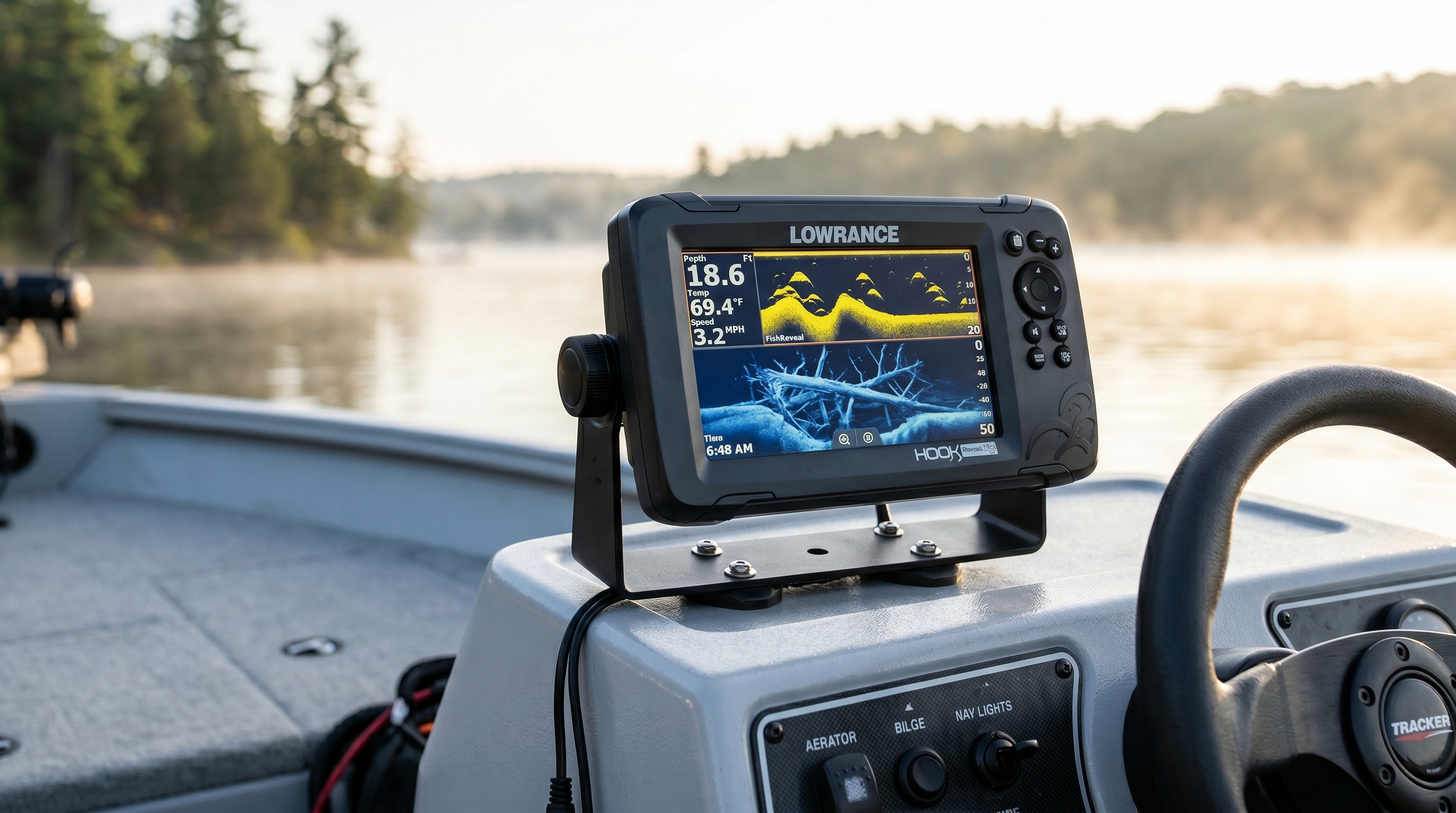

The HOOK Reveal 5x head unit features compact external dimensions measuring approximately 7.31 x 4.32 x 4.53 inches (packaged shipping box dimensions measure 9.02 x 7.13 x 7.52 inches with a total pack weight around 14.4 oz). This compact form factor fits snugly onto kayak gear tracks or small boat consoles without obstructing paddle strokes or helm visibility.

The device features an IPX7 waterproof rating (with the microSD card door properly closed). This rating ensures survival against continuous rain, heavy spray, and incidental submersions up to 1 meter deep for 30 minutes. The physical buttons have distinct tactile feedback, working smoothly even with wet neoprene gloves.

Display Performance: SolarMAX Daylight Visibility

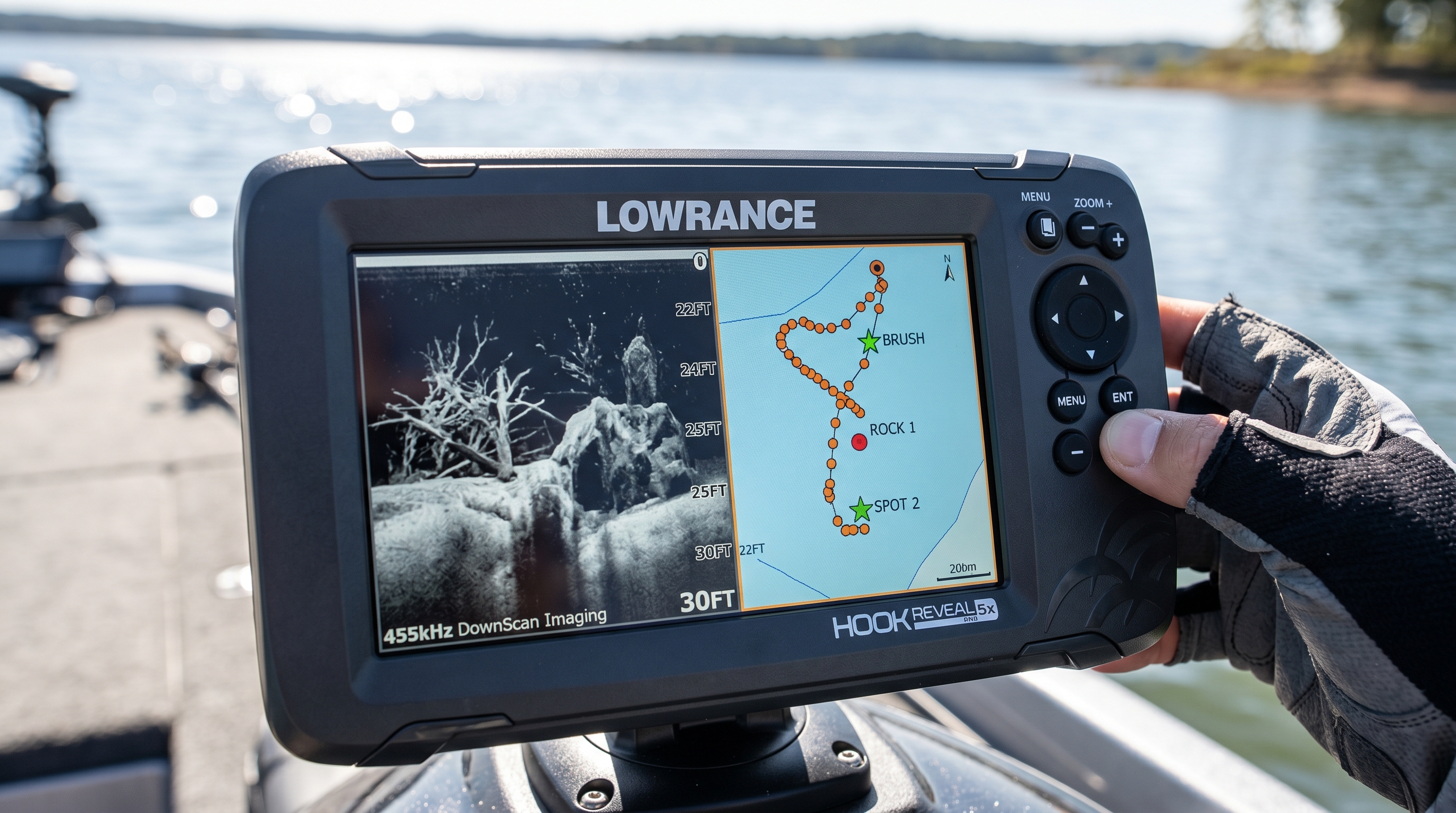

The front display features a 5.0-inch SolarMAX LCD panel with 800 x 480 pixel resolution and over 1,000 nits of white LED backlighting. In direct midday sun on the water, the anti-reflective coating prevents screen washout, maintaining high contrast whether seated at the helm or standing on the front casting deck.

Official Technical Specifications

Technical Performance: CHIRP, DownScan & FishReveal

The SplitShot Transducer: High CHIRP & DownScan

The included SplitShot Skimmer transducer combines a wide-angle High CHIRP (200 kHz) beam with high-frequency DownScan (455/800 kHz). High CHIRP delivers wide water column coverage to track suspended fish and jig action. To understand how frequency sweeps improve target identification over traditional single-frequency units, explore our guide on CHIRP vs. traditional sonar.

When switching over to DownScan Imaging, the unit utilizes 455 kHz for broader depth scanning and 800 kHz for high-definition detail in shallower zones. In practice, this dual-frequency approach translates to incredible precision. While traditional CHIRP gives you excellent target separation to distinguish a school of crappie from a sunken log, DownScan maps out individual branches on a brush pile, old bridge pilings, and precise transitions in bottom structure.

FishReveal Technology & Autotuning

Historically, anglers had to run a split-screen configuration to make sense of the underwater view: one side showing traditional CHIRP's bright fish arches, and the other showing DownScan's detailed structure. Lowrance solves this operational hassle with FishReveal technology. This processing feature overlays high-contrast, color-coded fish targets directly onto the detailed DownScan background. For tips on interpreting these screen overlays on the water, see our breakdown on how to read a fish finder like a pro.

The autotuning sonar actively adjusts sensitivity and surface clutter as you transition between shallow silt channels and deep basins, minimizing manual dial adjustments.

The GPS Trackplotter & Genesis Live Custom Mapping

Understanding the "5x" Mapless Plotter

In the Lowrance ecosystem, the "x" suffix denotes a mapless GPS trackplotter. The unit contains an internal 1 Hz GPS receiver that accurately logs coordinates, boat speed, and heading. You can store up to 3,000 waypoints, 100 routes, and 100 trails. However, there are no preloaded C-MAP or Navionics base maps installed on the unit.

Genesis Live 1/2-Foot Real-Time Contour Mapping

The lack of factory maps is solved by Genesis Live. By inserting a standard blank microSD card (up to 32GB, formatted to FAT32) into the card door, the unit dynamically draws custom bathymetric maps with tight 1/2-foot contour intervals as you navigate. This allows kayak and small-boat anglers to map uncharted farm ponds, tidal backwaters, and private reservoirs with pinpoint accuracy.

Head-to-Head: HOOK Reveal 5x vs. Garmin Striker Vivid 5cv vs. Humminbird PiranhaMax 4 DI

Here is how the Lowrance HOOK Reveal 5x SplitShot compares against its primary budget-tier marine competitors:

Market Positioning Analysis

Compared to the Garmin Striker Vivid 5cv, the Lowrance HOOK Reveal 5x edges ahead in imaging due to FishReveal and tighter 1/2-foot Genesis Live contours. If you only need a simple compact sounder for a kayak or float tube, compare with the Garmin Striker 4 or our castable pick, the ReelSonar iBobber.

Ease of Use, Keypad UI & Installation

Dedicated Keypad Controls & No Wireless Setup

On a 5-inch screen, physical buttons are superior to touchscreens that smudge and misregister when wet. The right-bezel keypad provides quick-access PAGES, ZOOM, and MENU controls with tactile feedback.

Note on Smart Connectivity: The HOOK Reveal 5x contains no Wi-Fi, no Bluetooth, and no smartphone app pairing. It operates purely as a self-contained, standalone marine electronics unit.

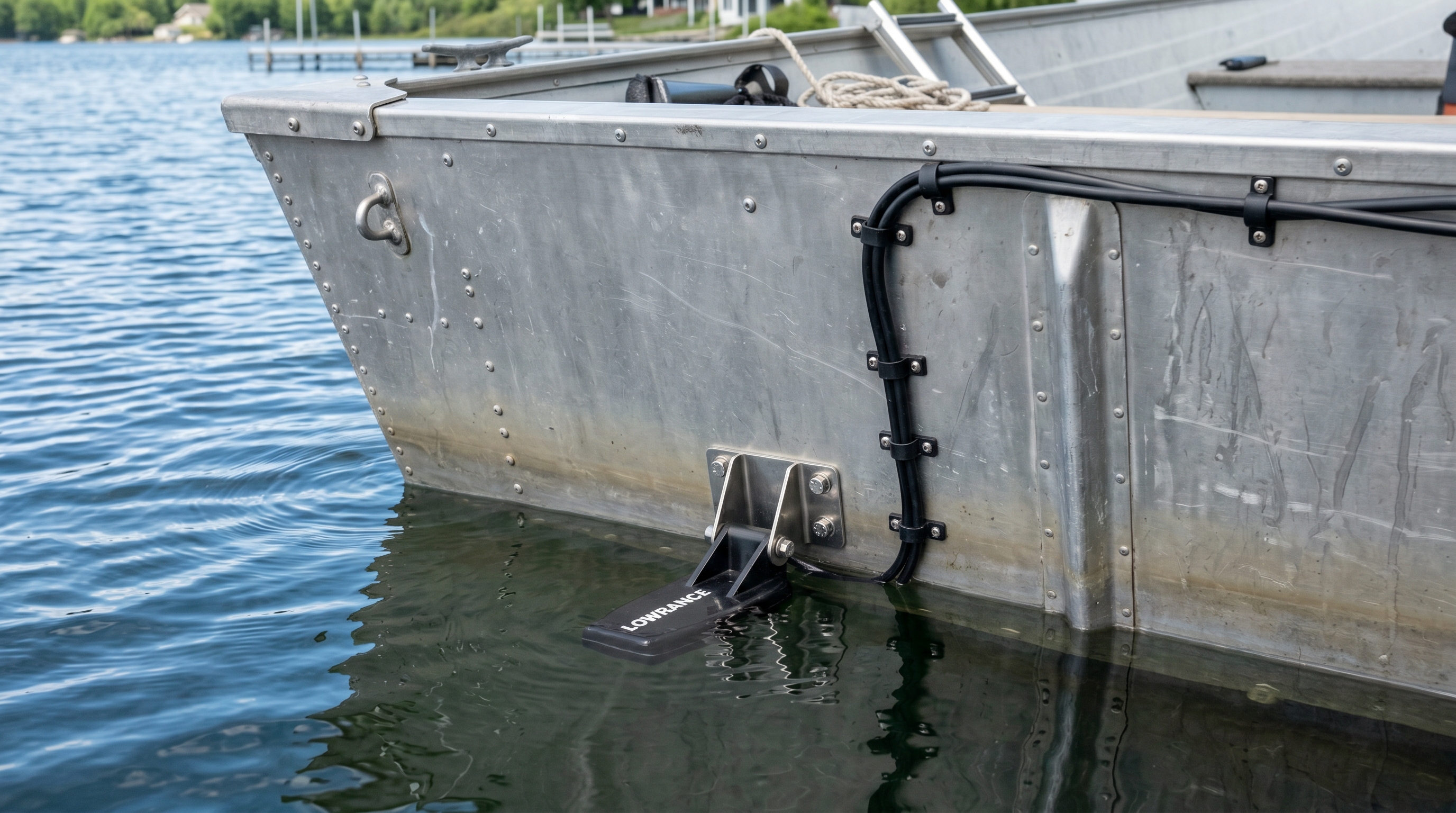

Transom & Kayak Power Installation

The unit operates on 12V DC power with a low current draw of approximately 0.9 Amps at maximum screen brightness. Connected to a standard 12V 7Ah–10Ah lithium battery on a kayak, it delivers 8 to 10+ hours of continuous on-water runtime without dropping critical voltage thresholds.

Pros & Cons Assessment

Who Is This For? (And Who Should Look Elsewhere)

The Ideal Angler Profile

The HOOK Reveal 5x is ideal for kayak anglers, jon boat owners, and small freshwater boaters who want crisp DownScan, FishReveal target separation, and real-time custom mapping without paying premium chartplotter prices.

Who Should Look Elsewhere

If you require preloaded coastlines and navigation charts out of the box, choose the non-x HOOK Reveal 5 (with C-MAP). If you need SideScan to scan 100+ ft flats horizontally, step up to a TripleShot model. For an ultra-portable clip-on sounder, consider the Venterior Portable Fish Finder.
