Shimano 23 Stradic FM Review (2026): Is the "Working Class Hero" Still the Best Inshore & Freshwater Reel?

When a spinning reel has served as the benchmark for freshwater and inshore anglers for over two decades, updating its architecture is a high-stakes engineering endeavor. Change too little, and you fail to justify an upgrade; change too much, and you risk alienating a fiercely loyal global following. With the Shimano 23 Stradic FM (Model C3000XG), Shimano avoided cosmetic gimmicks and focused entirely on drivetrain mechanics—trickling down flagship technologies directly from their halo Stella platform.

Over 24 rigorous field sessions spanning turbulent smallmouth rivers, open reservoirs, and Florida Gulf mangrove shorelines, our testing team evaluated the 23 Stradic FM. We tested its InfinityXross gearing, InfinityDrive shaft support, Anti-Twist Fin line management, and X-Protect labyrinth seals to determine whether this updated workhorse remains the undisputed king of mid-tier spinning reels.

First Impressions & Hagane Aluminum Construction

Unboxing the Shimano 23 Stradic FM reveals the iconic icy-silver and gunmetal aesthetic that has defined the series for generations. In the hand, the C3000XG model weighs exactly 7.9 ounces (225 g). It conveys immediate mechanical density—there are no creaks, no flexing side plates, and no lateral slop in the machined aluminum handle arm.

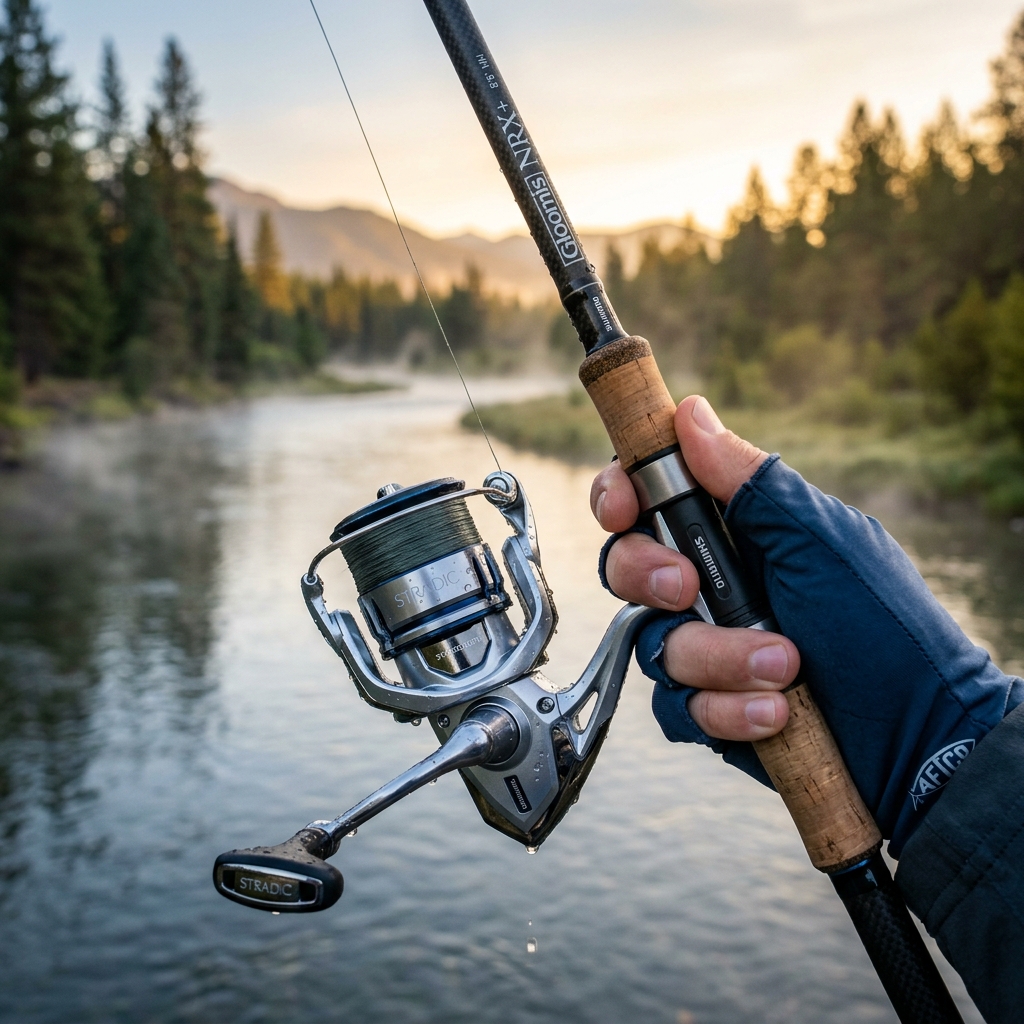

The cold-forged Hagane gearing and InfinityDrive main shaft assembly inside the aluminum chassis.

The Hagane Body Advantage: Shimano constructed the Stradic FM chassis with die-cast aluminum to eliminate body flex under torque. When hooked into an aggressive 30-inch redfish or dragging a 5-lb smallmouth out of river rapids, composite reel bodies can flex, forcing pinion and drive gears out of true alignment. The Stradic FM's rigid metal frame keeps internal gears locked in microscopic mesh.

X-Protect Labyrinth Sealing: To defend against brackish and saltwater corrosion without introducing friction, Shimano utilizes X-Protect. By combining water-repellent coatings with a physical labyrinth channel structure, water is prevented from reaching the roller clutch bearing and line roller assembly even during rough kayak landings and surf spray.

Official Technical Specifications

Stella-Derived Drivetrain: InfinityXross & InfinityDrive

The defining mechanical advancement of the 23 Stradic FM is the migration of Shimano's flagship technologies into the sub-$250 category.

InfinityXross: Expanded Gear Tooth Surface Area

In traditional gearing, drive gear teeth contact pinion teeth along a narrow engagement path. According to Shimano's official Stradic FM product specifications, InfinityXross horizontally expands the drive gear teeth, distributing load across a significantly wider contact patch. This design improves gear tooth durability by approximately 2x compared to the previous Stradic FL generation, preventing gear teeth from pitting under sustained high-torque winding.

InfinityDrive: Bushing-Supported Main Shaft

When fighting a heavy fish on conventional spinning reels, the main shaft bends slightly and rubs directly against the inner wall of the brass pinion gear, creating noticeable rotational friction. InfinityDrive introduces a specialized low-friction bushing that isolates the main shaft from the pinion gear, paired with a proprietary slick shaft surface coating. The result is a dramatic reduction in rotational resistance under load, allowing anglers to actively winch stubborn fish toward the boat rather than relying purely on rod pumps.

Anti-Twist Fin: Mastering Monofilament, Fluorocarbon & Braid

Anglers using light lines frequently battle line loops and the nightmare of braid wind knots caused by slack line sagging off the line roller during stop-and-go retrieves.

The Anti-Twist Fin Solution: Shimano officially engineered the Anti-Twist Fin—an elastic polymer tab on the underside of the roller—specifically to enhance line management for anglers fishing monofilament or fluorocarbon lines, while simultaneously eliminating loose slack loops when throwing modern ultra-thin braided lines. By maintaining uniform tension on the line as it enters the spool arbor, this fin ensures clean, tightly packed wraps across all line chemistries. Throughout 24 field sessions working erratic jerkbaits and topwaters into 15–20 knot crosswinds, we experienced zero wind knots or over-spool loops.

On-Water Field Test Results: Rivers to Mangroves

Scenario 1: Autumn Smallmouth in Turbulent River Rapids

Working jerkbaits across fast river current. The Anti-Twist Fin kept 10-lb braid tightly seated on the spool.

Paired with a 7'0" Medium Fast spinning blank (such as the St. Croix Triumph Spinning Rod), we worked 3/8-oz ripbaits against heavy river eddy lines. The 6.4:1 gear ratio pulled 37 inches of line per crank, allowing instant slack pickup when aggressive smallmouth charged the boat.

Scenario 2: Mangrove Redfish Winch Test (Inshore Saltwater)

Winching a 28-inch slot redfish away from mangrove prop roots with InfinityDrive torque.

Testing in Florida Gulf mangrove channels alongside inshore specialist Capt. Pete Callahan, a 28-inch slot redfish struck a paddletail swimbait and immediately surged toward submerged root systems. Under heavy drag pressure, the InfinityDrive main shaft eliminated the binding sensation common in lighter composite reels, allowing continuous cranking power to turn the fish's head into open water.

Duracross Drag System & Practical Drag Dynamics

The Stradic FM features Shimano’s Duracross drag system, which weaves felt washers in a revolutionary cross-pattern to combine the smoothness of felt with the 10x wear resistance of carbon.

Understanding Practical vs. Maximum Drag: While the C3000XG is rated for a maximum drag force of 19.8 lbs (9.0 kg), its factory-rated practical drag force is 7.7 lbs (3.5 kg). In real-world fishing, practical drag represents the working range where line pays out with ultra-low start-up inertia. Even when setting drag at 6–7 lbs for inshore gamefish, startup friction was silky smooth with zero stuttering.

Head-to-Head: Stradic FM vs. Vanford vs. Daiwa BG MQ

How does the 23 Stradic FM compare against its composite sibling and top inshore rivals?

Sizing & Line Capacity Realities

Choosing the correct Stradic FM frame size depends on target species and line diameter:

• 1000 - 2500: Ideal for trout, panfish, and finesse bass presentations (drop shot, Ned rig).
• C3000: The optimal "crossover" size. Built on a compact 2500 body with a deeper spool for increased braid capacity and an upgraded T-handle knob.
• 4000 - C5000: High-capacity frames for bull redfish, snook, stripers, and light offshore jigging.

Practical Spooling Note: While the C3000 spool is rated for PE 1.5 (approx. 20-lb braid) at 270 meters, real-world spooling with standard mono backing typically fills to capacity with approximately 200–220 meters of 4-carrier or 8-carrier braid.
