Penn Battle IV Review (2026): We Tested It for 14 Sessions — Here's the Truth

Penn Battle IV — First Impressions & Build Quality

When you pull the Penn Battle IV out of the box, the immediate takeaway is gravity. In an era where manufacturers are racing to shave fractions of an ounce using carbon-infused resins and skeletal frame designs, Penn steadfastly refuses to compromise on armor. According to Penn's official Battle IV specifications, the fourth iteration introduces key durability and sealing advancements that set it apart from previous generations.

The Full Metal Body and sideplate feel like a cold, unyielding piece of industrial machinery. We tested the 4000 size (Model: BTLIV4000), and holding it side-by-side with lightweight composite reels like the Penn Pursuit V, the difference in rigidity and heft is immediate. When you apply aggressive torque to the handle against heavy resistance, the metal chassis simply does not flex.

Penn refined their CNC Gear Technology in the Battle IV. The main gear, pinion gear, and oscillation gear are cut from solid brass to exacting tolerances rather than cast. When slowly rotating the handle on the workbench, the meshing is deliberate and tight. It lacks the frictionless, featherweight rotation of freshwater reels, but it feels distinctly more durable—like the transmission of a heavy-duty pickup truck.

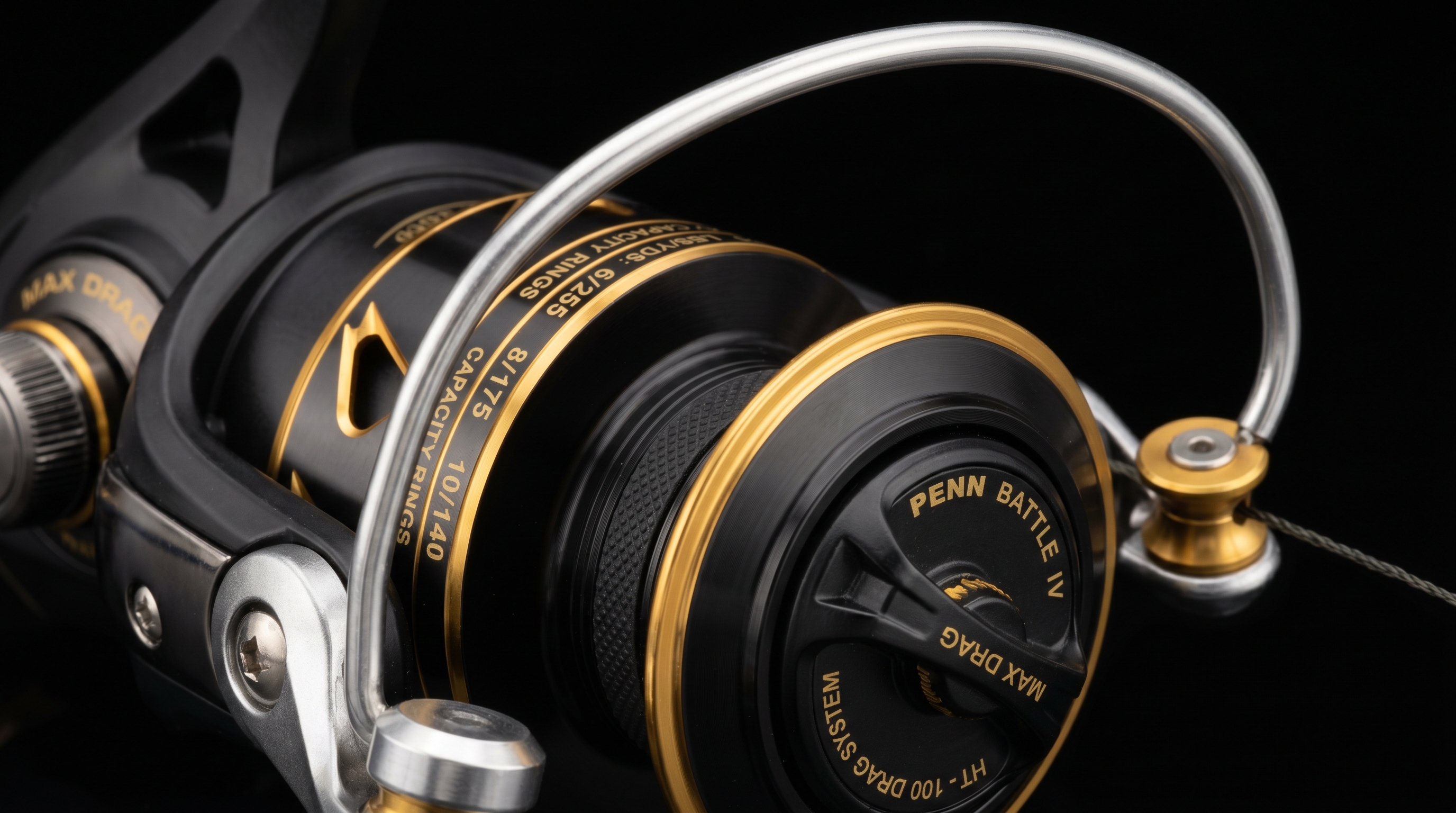

Macro studio photography detailing the full metal aluminum body, Hydro Armor sealing points, and CNC cut brass gearing on the Penn Battle IV.

Hydro Armor Sealing & Bearing Protection

The biggest engineering step forward from the Battle III to the Battle IV is the integration of Penn's Hydro Armor sealing system. Rather than leaving internal cavities exposed to coastal elements, Hydro Armor places precision gaskets and seals at critical junction points—including the handle shaft, body perimeter, and drag knob interface.

Coupled with a 5+1 sealed stainless steel ball bearing system (an upgrade over the shielded bearings found on earlier models), the Battle IV provides aggressive defense against wind-blown salt spray, splashing chop, and fine jetty sand. While it is not designed for continuous underwater submersion, it dramatically reduces the risk of salt crystallization seizing internal components.

Official Technical Specifications (Model: BTLIV4000)

What the Specs Mean on the Water

The 4000 size we tested features a 6.2:1 gear ratio, recovering exactly 37 inches of line per handle turn. On paper, that sounds fast. On the water, it means you can effectively govern the pace of a fleeing pelagic fish. When a false albacore or bluefish turns and burns directly toward your boat, 37 inches per crank is the critical threshold required to maintain tension on the line and prevent the hook from unseating—a dynamic we break down thoroughly in our Fishing Reel Gear Ratios Explained Guide.

Penn's proprietary HT-100 carbon fiber drag system provides 15 pounds of max drag on the 4000 model. Unlike felt drag washers that quickly compress, heat-glaze, and slip erratically under pressure (detailed in our Felt vs Carbon Fiber Drag Washers Comparison), HT-100 washers dissipate friction-induced heat smoothly across long, punishing runs.

Performance — Field Test Results

We spent 14 on-water sessions in April 2026 putting the Battle IV 4000 through the wringer during the spring striped bass and bluefish runs across high-current tidal estuaries and nearshore coastal reefs. We spooled the reel with 30-pound braided line tied to a 25-pound fluorocarbon leader using the FG knot described in our FG Knot vs Palomar Knot Guide, pairing it with a 7'6" medium-heavy fast-action inshore rod.

Drag Smoothness Under Sustained Load

The ultimate test of a saltwater reel is how the drag manages violent, unpredictable surges. On our fourth session, we tied into an aggressive spring bluefish bite. When a 14-pound bluefish made a 50-yard blistering run against a heavy outgoing tide, the HT-100 drag surrendered line with surgical consistency.

There was zero detectable start-up inertia—the exact millisecond the fish exceeded our preset drag tension, the spool rotated smoothly. We experienced no pulsing, no stuttering, and no heat fade, even after landing 12 aggressive fish in a tight two-hour window. The metallic drag clicker projects a sharp, mechanical tone that leaves no ambiguity about how fast line is exiting the spool.

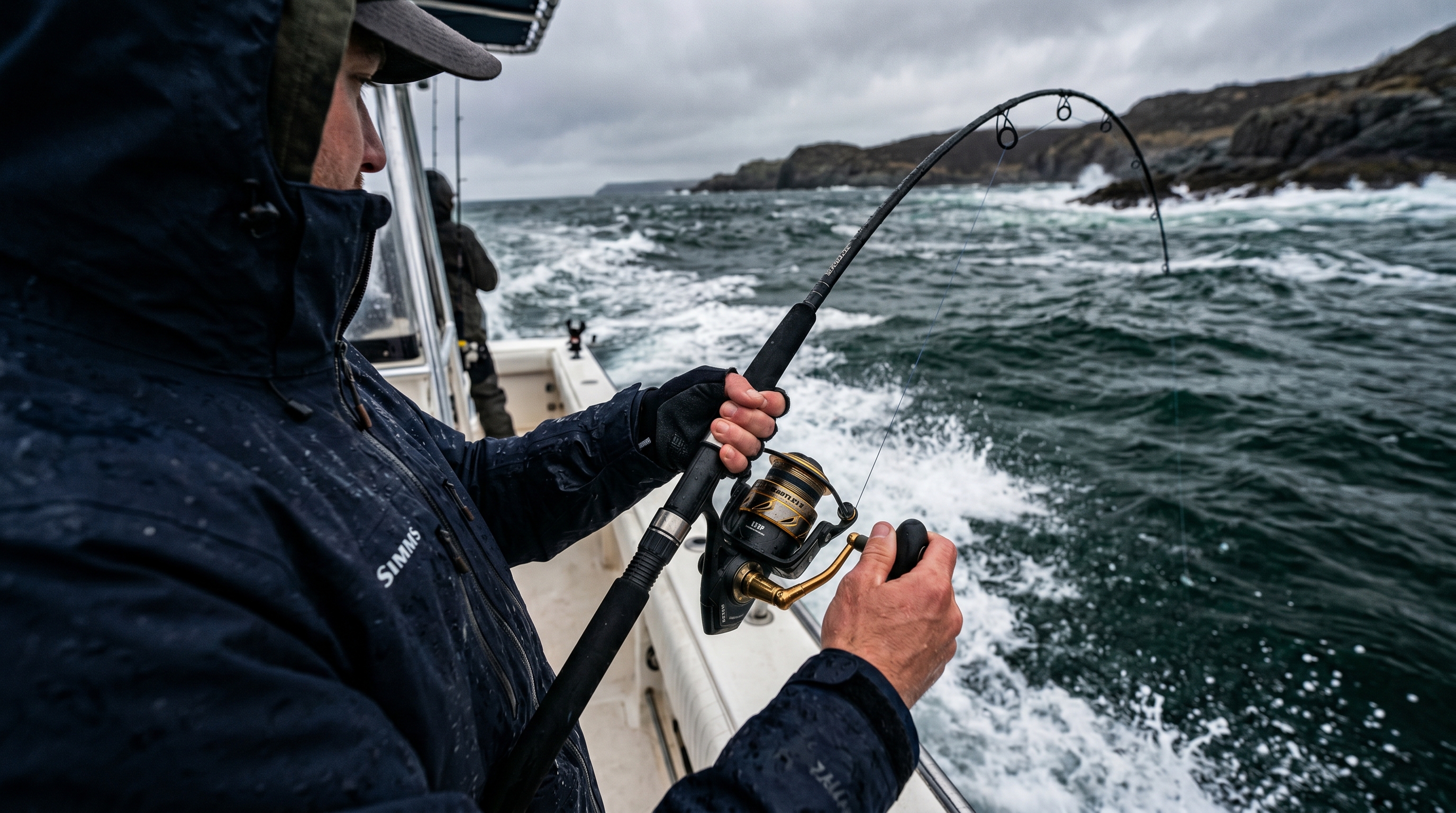

Action field testing the Penn Battle IV 4000 on tidal estuaries, evaluating full metal body rigidity and drag smoothness against hard-running gamefish.

Casting Distance and Line Lay

Line management is an area where heavy-duty reels sometimes stumble. The Battle IV features an improved oscillation system compared to early generations. We observed a clean, cylindrical line lay with 30-pound braid, avoiding the hourglass dips that produce wind knots.

Casting 1 oz bucktails and 1.5 oz topwater pencil poppers, the line peeled off the machined spool lip cleanly. We consistently hit the 65-to-75-yard mark when punching aerodynamic jigs into a 15-knot headwind without experiencing a single spool overrun.

Edge Cases & Stress Testing

Every piece of tackle has physical limitations, and pushing the Battle IV beyond ordinary boundaries revealed several key insights:

Physical Fatigue & Casting Weight

At 12.2 ounces for the 4000 size, the Battle IV demands forearm stamina. By hour five of continuous casting and aggressive topwater pencil popper twitching, wrist fatigue was noticeable compared to composite reels. If your style focuses on making 500+ delicate finesse presentations a day, this heavyweight chassis will work against you.

The "Jetty Drop" Impact Test & Paint Wear

We subjected the reel to our "Jetty Drop" test—simulating a slip on wet rocks where the reel body takes a direct blow. The full aluminum frame absorbed the blunt impact without denting or causing gear misalignment. However, the black paint finish scratched down to bare aluminum readily. It handles structural punishment with ease, but cosmetic battle scars are guaranteed.

Bail Assembly & Left-Hand Line-Roller Clearance

Several long-term angler field reports have noted that the angle between the bail arm fastener and the line roller can occasionally create a momentary line snag when casting with non-standard left-handed grips or extremely limp micro-braid. In our 14 sessions using 30 lb braid, we did not experience snagging, but anglers using ultra-light braid (<15 lb) on smaller 2500 sizes should ensure their line flows cleanly into the roller before initiating rapid retrieves.

Water Intrusion Limitations

While the Hydro Armor system effortlessly shrugs off heavy salt spray and boat deck washdowns, the Battle IV is not IPX8 rated for prolonged underwater submersion. If you drop the reel into crashing surf breakers, salt water can penetrate through the spool arbor and drag stack, requiring immediate freshwater flushing as detailed in our guide on How to Clean and Maintain Fishing Reels.

Head-to-Head — How It Compares

The Verdict on the Competition

The Penn Battle IV wins on uncompromising rigidity and rugged gear longevity. The CNC cut brass gear train inside a full aluminum housing offers superior winching strength against heavy inshore fish compared to composite reels. For anglers comparing in-house options, our Penn Pursuit V Review and Penn Fierce III Review cover lower-budget composite and aluminum alternatives, while our Daiwa BG Review evaluates its closest direct rival. For deep surf waders who submerge their gear, the Shimano Spheros SW remains the pick for full waterproofing. Check our comprehensive Saltwater Spinning Reels Buyer's Guide for detailed category comparisons.

Ease of Use — Setup, Ergonomics & Learning Curve

Rigging the Battle IV is straightforward thanks to Penn's Superline Spool engineering.

The Superline Spool Advantage

Traditional spinning spools require laying down a monofilament backing or electrical tape to prevent slippery braided line from spinning freely around the arbor under heavy drag tension. Penn integrates a textured rubber gasket directly into the arbor center, allowing you to tie braid directly to the core without slipping, as explained in our guide on How to Spool a Spinning Reel Correctly.

Machined line capacity rings at 1/3, 2/3, and full capacity provide immediate visual feedback during extended runs, eliminating guesswork when deciding how aggressively to clamp down on a surging fish.

Handle Ergonomics

The 4000 model features an ergonomic EVA paddle knob that provides positive traction even when hands are wet or covered in bait scent. Anglers stepping up to 5000 and larger sizes receive an oversized round aluminum power knob for additional leverage against deep-running gamefish.

Pros & Cons — The Honest Assessment

Who Is This For? (and Who Should Look Elsewhere)

Ideal for:

• Inshore & Nearshore Saltwater Anglers: Targeting striped bass, bull redfish, snook, and bluefish around jetties, bridges, and oyster reefs where structural winching power is critical.
• Kayak Fishermen: Anglers who need a bombproof aluminum reel that withstands cockpit banging and salt spray without cracking (see our Ultimate Kayak Fishing Guide).
• Live Bait & Heavy Bottom Anglers: When soaking chunk bait or working heavy jigs where reel durability outweighs featherweight casting fatigue.
• Long-Term Durability Seekers: Anglers wanting CNC brass gearing and metal construction that will last multiple seasons of saltwater abuse.

Look elsewhere if:

• You wade deep in breaking surf: If your reel is regularly dunked in waves, step up to a fully sealed offshore system like the Penn Squall II or an IPX8 rated platform.
• You cast lightweight finesse lures all day: Anglers throwing 1/8 oz to 1/4 oz jigs for hours should look toward lightweight composite options like the Shimano Sedona or Penn Pursuit V.
