KastKing MegaTron Baitcasting Reel Review: Brute Force Reliability for Heavy Cover

KastKing MegaTron — First Impressions & Build Quality

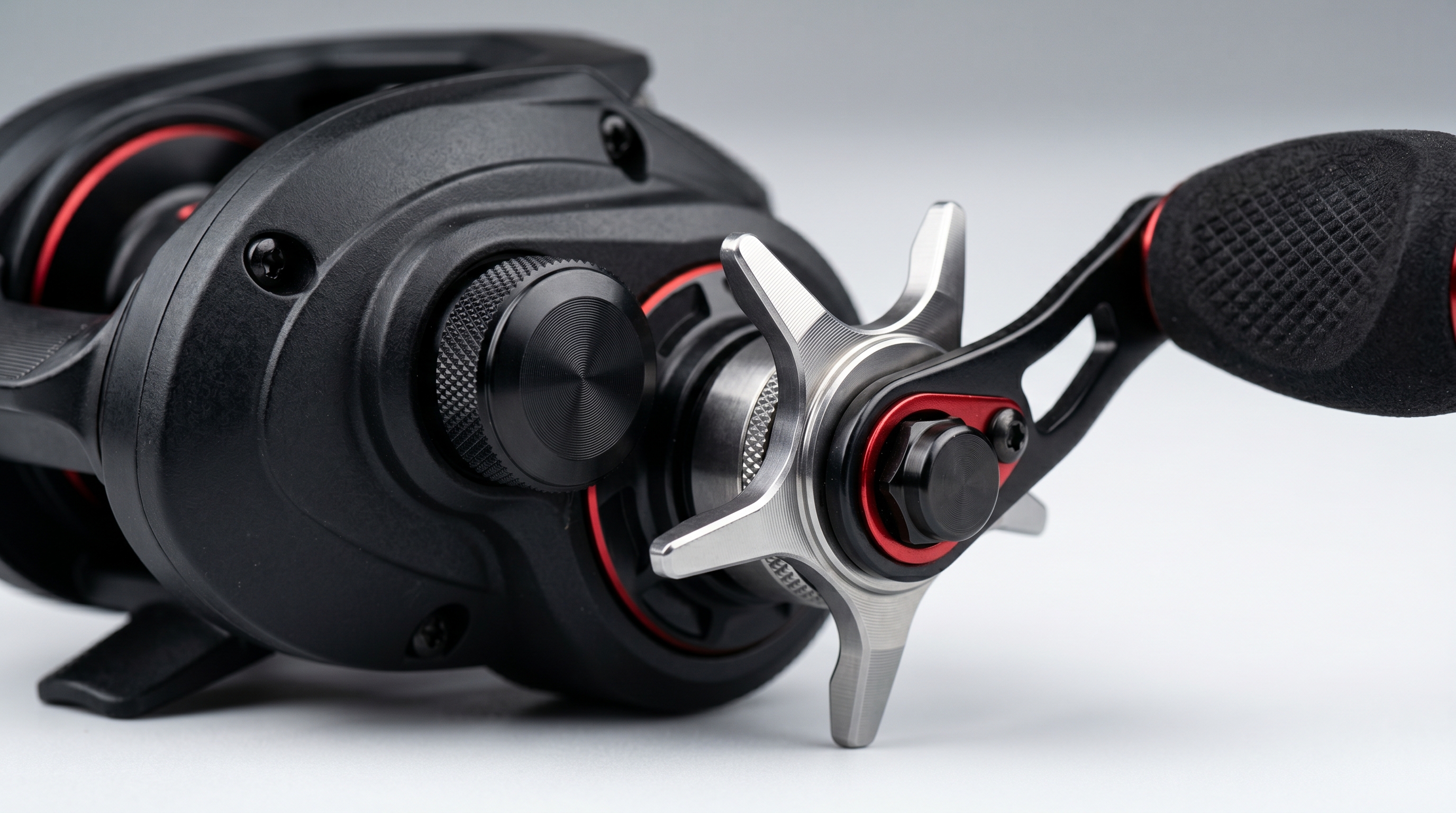

Close-up view of the KastKing MegaTron's lightweight graphite frame and CNC machined brass gears.

Pulling the KastKing MegaTron from the box, the first thing you notice is the aggressive, geometric design. KastKing leaned heavily into a "bionic" or cybernetic aesthetic here. While the sharp lines and matte finish look striking, what actually matters to our field team is what sits beneath the surface.

The foundation of the MegaTron is its lightweight graphite frame, paired with graphite side covers — a deliberate engineering choice that keeps the total weight down to 9.1 oz while maintaining enough structural rigidity for power fishing. In the budget baitcaster market, manufacturers often cut costs by using inferior materials throughout, but KastKing's graphite frame is carefully designed to fit comfortably in the hand while resisting the torque of a heavy hookset. Squeezing the frame reveals a solid, stable housing that keeps the precision brass gears in alignment when under duress.

Internally, KastKing equipped this reel with precision CNC machined brass main and pinion gears. Brass is heavier than the duralumin alloys found in finesse reels, but it is substantially harder and more resistant to long-term grinding wear. The 7+1 double-shielded stainless steel bearings rotate smoothly out of the box. Double shielding is critical here—it prevents micro-grit and salt crystals from infiltrating the bearing race, a mandatory feature since this reel is marketed for both freshwater and inshore saltwater use.

The build quality isn't flawless, however. The graphite frame and side covers, while functionally solid, feel slightly less premium to the touch than aluminum-framed alternatives at higher price points. Additionally, the factory grease applied to the main gear was excessively thick on our test unit, which required a brief break-in period before the reel reached its maximum free-spool potential.

What the Specs Actually Mean on the Water

Spec sheets often read like a manufacturer's wish list. Here is how the MegaTron’s numbers actually translate to your time on the boat:

28.6 lbs Triple Disc Carbon Fiber Drag: Most budget reels cap out around 10 to 15 pounds of drag. A 28.6-pound rating means you can fully lock down the star drag, bury a heavy flipping hook into the roof of a bass's mouth, and winch the fish through matted vegetation without the spool slipping. In practice, no angler runs a reel at max drag — but the headroom that 28.6 lbs provides ensures the drag remains buttery smooth throughout its entire usable range, never reaching the sticky or inconsistent zone at the top of the stack.

7.2:1 Gear Ratio (High Speed Model): Pulling in roughly 29.8 inches of line per handle turn, this ratio is a mechanical advantage for reaction strikes. When dragging a hollow body frog over lily pads, a bass will often blow up on the bait and immediately charge straight toward the boat. This ratio allows you to pick up slack line fast enough to catch up to the fish and drive the hook home before they spit the lure. Understanding how gear ratio translates to line retrieval speed and drag setting principles is key to maximizing this reel's performance.

8-Button Magnetic Brake System: Unlike dual-braking systems that use both centrifugal pins and magnets, the MegaTron relies purely on a multi-magnet array alongside the spool. Ten individual magnets exert force on the spool to tame rotation during the cast. In practical terms, this allows for rapid, external adjustments when the wind changes direction, without requiring you to pop the side plate off in a rocking boat.

Official Technical Specifications (MegaTron 200)

Performance — Field Test Results

Testing the KastKing MegaTron's carbon fiber drag and bearing durability on brackish saltwater flats.

Our field testing spanned 14 on-water sessions primarily targeting largemouth bass in heavily vegetated Southern impoundments, alongside two weekend trips chasing redfish on brackish tidal flats. We spooled the MegaTron with 65lb braided line and paired it with a heavy-power, fast-action 7'4" casting rod—a dedicated setup for heavy cover.

The reel's primary job was simple: extract fish from terrible places. On day three of testing on Lake Seminole, the MegaTron proved its worth. Throwing a 3/4 oz punch skirt and heavy tungsten weight into dense pennywort, a solid strike resulted in a vicious hookset. The graphite frame remained completely rigid, transmitting the full force of the rod directly into the fish. We wrenched a 5lb 4oz largemouth out of the mat, dragging several pounds of vegetation with it. The carbon fiber drag did not stutter, slip, or yield a single inch of line during the extraction.

Inshore, the performance mirrored our freshwater results. Casting 1/2 oz gold spoons for slot redfish requires repetitive, long-distance chucks. The 7+1 stainless bearings allowed for smooth, sweeping casts, and the drag managed the sustained, surging runs of a 26-inch redfish with impressive fluidity. Carbon fiber drag washers are notorious for being sticky on startup if not lubricated properly, but the MegaTron dispensed line smoothly, preventing the braided line from digging into itself on the spool.

What surprised us most was the casting distance with heavy lures. With the magnetic brakes dialed back to the '3' setting and the spool tension knob adjusted to just eliminate side-to-side play, a 1/2 oz casting jig soared with minimal thumb pressure required.

Edge Cases & Stress Testing

Every reel has a breaking point or a designated weak zone. For the MegaTron, its weakness is unequivocally finesse presentations.

We attempted to stress-test the reel's versatility by dropping down to a 1/4 oz shaky head paired with 12lb fluorocarbon. The results were frustrating. The aluminum spool on the MegaTron is relatively deep and heavy to accommodate high line capacity. A heavier spool requires more initial force to start spinning and more braking force to stop. When casting lightweight lures, the heavy spool struggles to accelerate smoothly, and once it does, it tends to overrun the slow-moving light bait. We experienced repeated backlashes when casting directly into a stiff breeze with anything under 3/8 oz. This reel is built for throwing bombs and winching heavy fish; it is entirely the wrong tool for skipping light finesse jigs under docks.

Head-to-Head — How It Compares

The MegaTron dominates the Abu Garcia Max Pro in drag stopping power and line capacity. While both sit in a similar entry-level bracket with durable graphite chassis, the Max Pro's 15-pound drag cannot match the 28.6 lbs of stopping force delivered by the MegaTron's triple-disc carbon stack. However, when compared to the Daiwa Fuego CT, the narrative shifts. The Fuego CT features an aluminum frame and utilizes Daiwa's vastly superior Magforce-Z braking system, which handles light wind and lighter lures significantly better than the MegaTron. If you need raw drag power and high line capacity, the MegaTron wins. If you want refined casting control for a wider variety of lure weights, the Fuego CT justifies its slightly higher cost.

Ease of Use — Setup, Ergonomics & Learning Curve

Getting the MegaTron dialed in requires a basic understanding of baitcaster mechanics. The 8-button magnetic brake dial on the palming side plate clicks audibly, allowing for micro-adjustments in the dark or without taking your eyes off the water. However, the dial is slightly recessed into the angular side plate, requiring a firm grip with your thumbnail to turn it effectively.

Ergonomics present the largest hurdle for this reel. The "bionic" design relies on sharp angles and geometric styling. While it looks aggressive on the rod deck, those sharp lines translate into hot spots on your hand during extended use. After six straight hours of pitching jigs—a technique that requires you to aggressively palm the reel—the angular hood began digging into the base of the thumb. Anglers with smaller hands will likely find the bulky, blocky profile difficult to wrap their hand around comfortably for a full tournament day.

On the positive side, the 105mm aluminum handle arm features oversized cork grips. These grips shed water instantly and provided excellent traction even when our hands were coated in fish slime and sunscreen during our inshore tests.

Pros & Cons — The Honest Assessment

Who Is This For? (and Who Should Look Elsewhere)

Ideal for:

• Heavy Cover Bass Anglers: If you spend your weekends throwing hollow body frogs, heavy punch rigs, or large swimbaits, this reel has the backbone required.
• Inshore Saltwater Anglers: The double-shielded bearings and high line capacity make it an excellent budget option for targeting redfish, snook, and speckled trout.
• Budget-Conscious Power Anglers: Anyone who needs a dedicated, heavy-duty setup but refuses to spend premium prices for a situational rod-and-reel combo.

Look elsewhere if:

• You throw light lures: If your primary techniques involve weightless flukes, light Texas rigs, or small crankbaits, you will be fighting backlashes all day. Look directly at the Shimano SLX DC instead.
• You prioritize ergonomic comfort: If you have smaller hands or prefer a reel that melts into your palm like a smooth pebble, the bulky, angular MegaTron will frustrate you. Consider the Daiwa Tatula CT for a much better palming experience.
